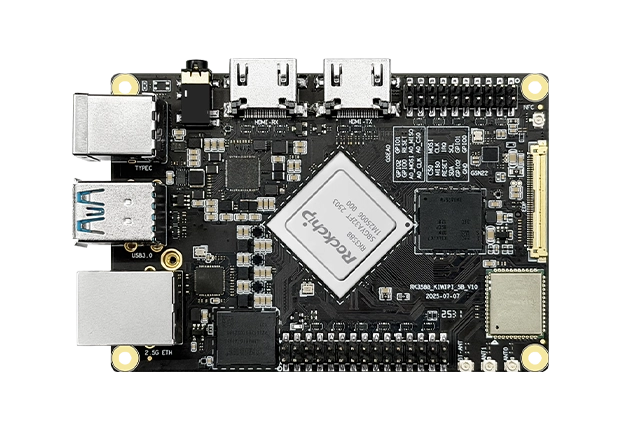

Kiwi Pi 5B
|
$229.00 USD $249.00 USDSave $20 USD
Accessories
Configuration
8+64GB
Quote
Accurate positioning
Motion Recognition
Long-lasting battery life
Smart connection
Product Description

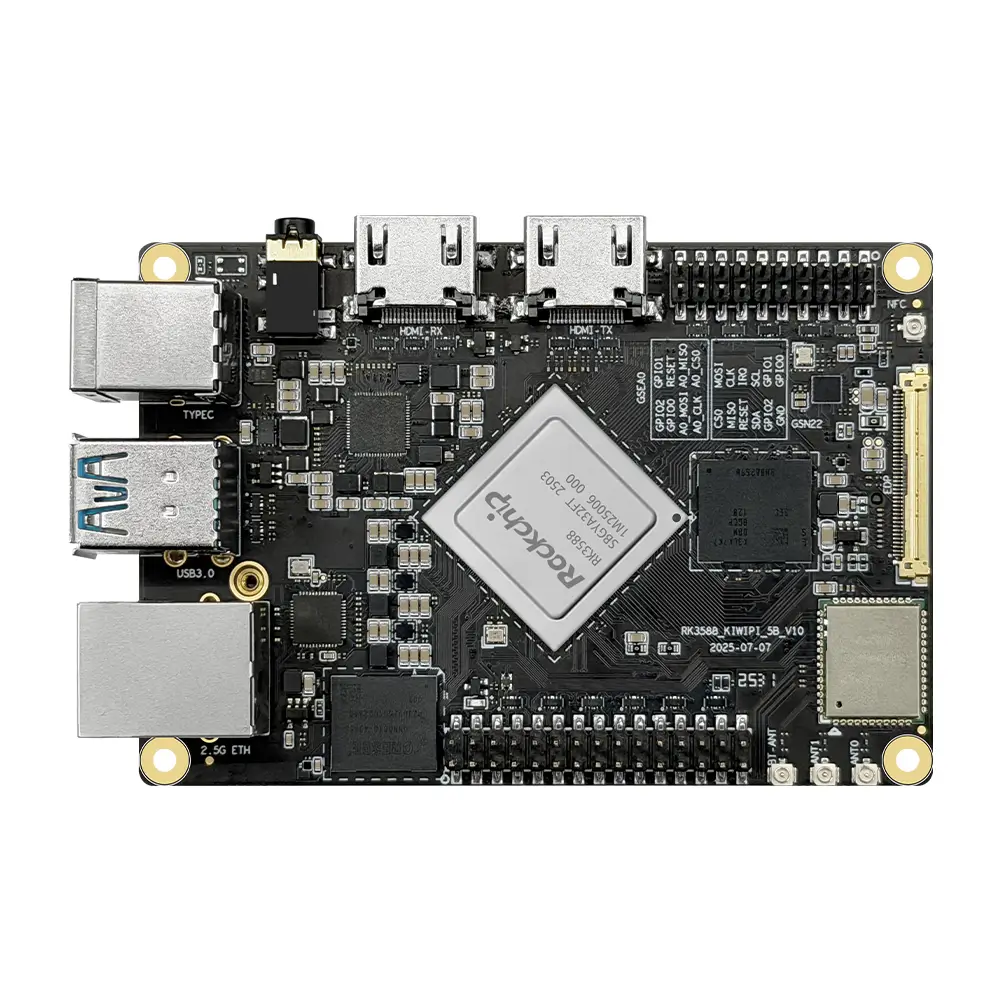

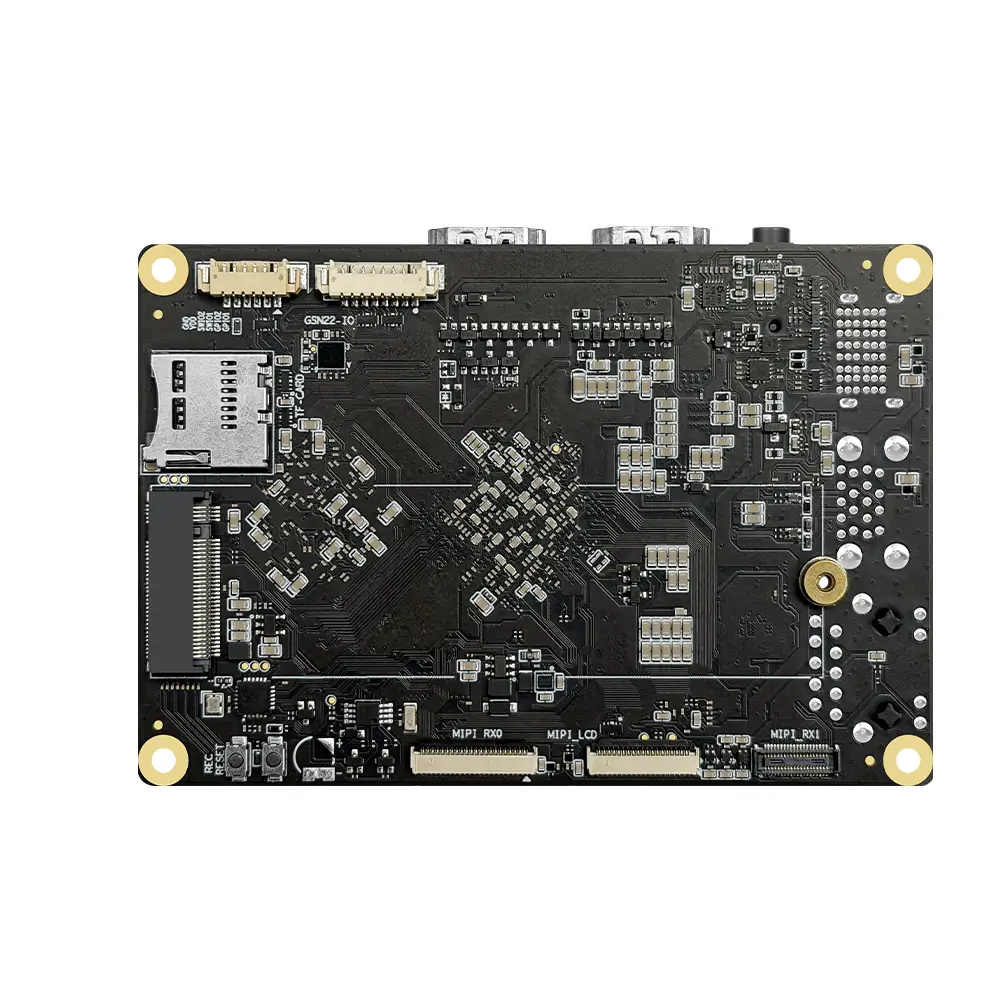

The Kiwi Pi 5B RK3588 single-board computer (SBC), an alternative to the Raspberry Pi 5, features an 8-core CPU, Mali-G610 GPU, and 6 TOPS NPU.
Packing list
Basic parameters
| Basic parameters | CPU | 8nm process, Quad core Cortex-A76 + Quad-core Cortex-A55 |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 Vulkan 1.1，1.2 OpenCL 1.1,1.2,2.0 Embedded high-performance 2D image acceleration module | |
| NPU | Triple core 6TOPS performance Support int4/int8/int16/FP16/BF16/TF32 acceleration | |
| Video Codec | H.265/H.264/AV1/AVS2 etc. multi video decoder, up to 8K@60fps 8K@30fps video encoders for H.264/H.265 | |
| Display | Built-in eDP/DP/ HDMI2.1/MIPI display interface Supports multiple display engine max to 8K@60fps Supports multi-screen display with 8K60FPS max | |
| Video in and ISP | Dual 16M Pixel ISP with HDR&3DNR Multiple MIPI CSI-2 and DVP interface, support HDMI 2.0 RX Support HDMI2.0 input with 4K60FPS max | |
| High speed interface | PCIe3.0/PCIe2.0/SATA3.0/RGMII/TYPE-C/USB3.1/USB2.0 | |
| LPDDR5 | 8GB | |
| Onboard Storage | eMMC5.1 64GB | |
| SDMMC | TF Card Slot | |
| SSD(NVME) | M.2 2280 M-Key Slot, PCIe3.0 | |
| WLAN | WIFI6, IEEE802.11 a/b/g/n/ac/ax, 2T2R Bluetooth 5.2 Compatible with V2.1+EDR | |
| NFC | NFC-A/B/F/Vcommunication,NFC-A/B/F card emulation | |
| LAN | 10/100/1000M/2.5G Ethernet | |
| Video output | 4 Lanese DP1.3,maximum video output capability up to 4K@60Hz 4 Lanes MIPI-DSI,maximum video output capability up to 2K@60Hz Supports I2C touch panel HDMI2.1,maximum video output capability up to8K@60Hz Tyoe C, DP1.4Alt, maximum video output capability up to 8K@30Hz | |
| Video input | 2*4 Lanes MIPI-DPHY-CSI 2*4 Lanes MIPI-C/DPHY-CSI HDMI 2.0 input | |
| USB | Type-C: 1*Type-C3.0OTG with DP Alt mode 1*Type-CDC poweri nputs upport PD/QC charging protocol 1*Type-CUS B to UART debug 2*USB 3.0 HOST 1*USB 2.0 HOST (I/OExpand) | |
| Audio | 3.5mm HP jack, supports stereo output and mic input Onboard MEMS microphone | |
| Real-time clock | Support RTC with a rechargeable battery | |
| Security | Support Goodix GSEA0 and GSN22 eSE chip | |
| I/O Expand | 2.54mm pitch 2 * 15Pin socket with programable I/O support USB2.0,UART,I2C,SPI,CAN,PWM,GPIO etc. support 5V and 3.3V output | |
| KEY | Onboard Boot, Reset, Recovery buttons | |
| Power supply | Type-C DC power input supports PD/QC charging protocol Default 12V/2.5A DC power supply | |
| OS | Android16, Ubuntu24.04, Debian11, Linux6.0 and Chinese OS |
