KiwiPi 5 Pro
RK3588 Singe-Board Computer
· Powered by the RK3588 octa-core processor
· Up to 32GB of RAM
· Various deep learning frameworks
· Private deployment of large AI models
· Supports 8K high-definition video encoding and decoding
· Multiple operating systems
· Features extensive expansion interfaces for peripheral connectivity
· Provides comprehensive development resources

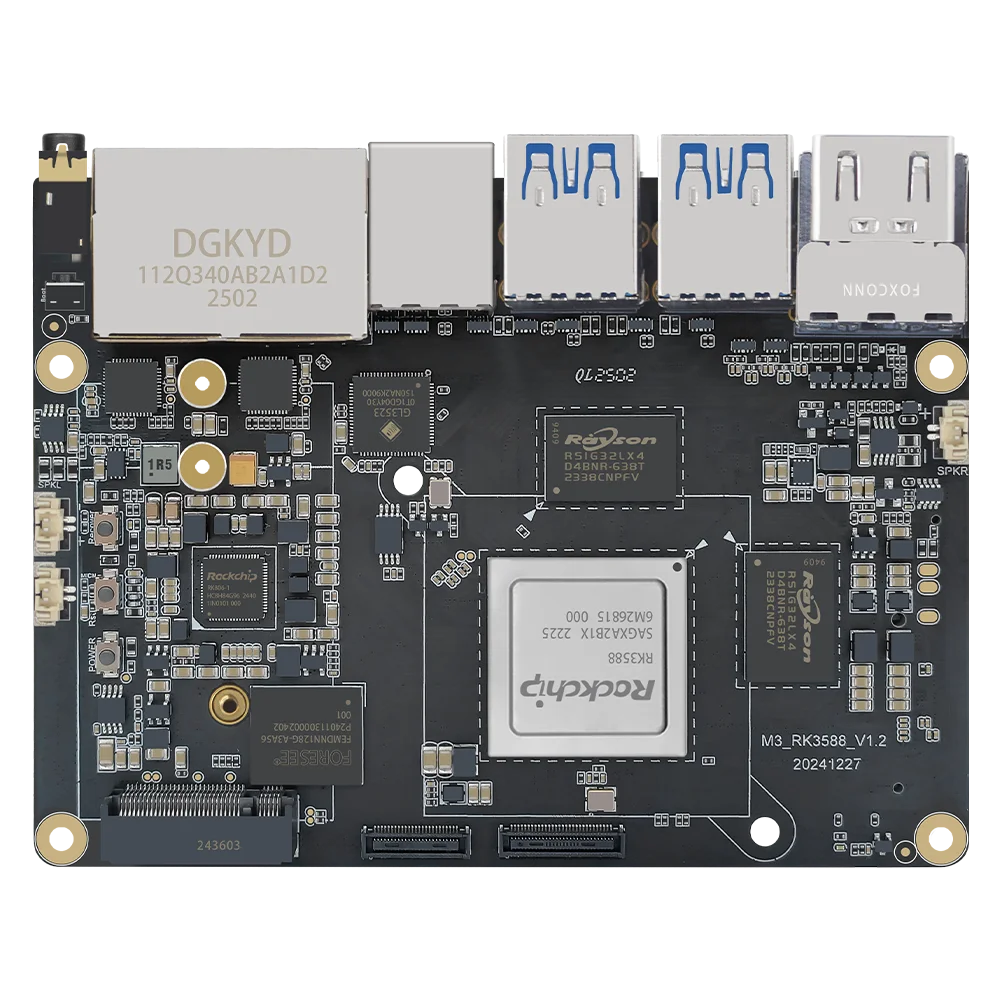

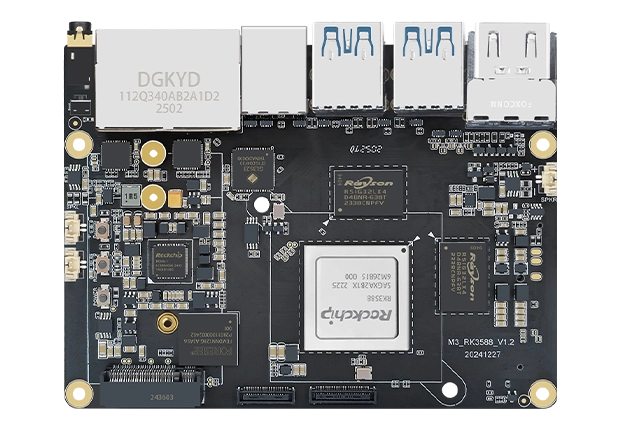

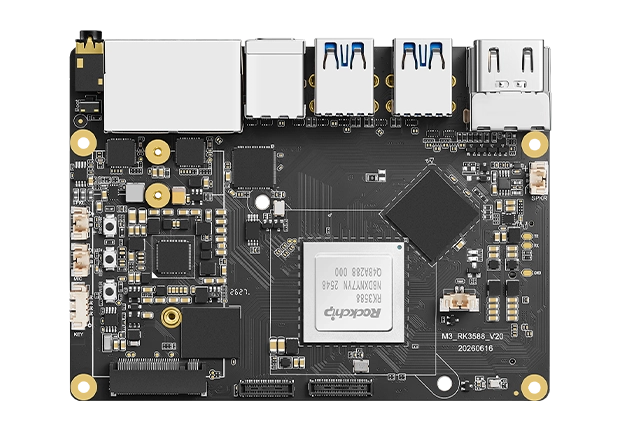

Kiwi Pi 5 Pro
Rockchip RK3588
The KiwiPi 5 Pro RK3588 single-board computer is equipped with an 8-core 64-bit processor, including four Cortex-A76 cores running at 2.2GHz, four Cortex-A55 cores at 1.8GHz, and a dedicated NEON coprocessor.
AI Performance
Includes a triple-core NPU that offers 6 TOPS of performance and accelerates multiple data types such as int4, int8, int16, FP16, BF16, and TF32.
8K Ultra HD
Supports stunning 8K Ultra HD resolution for an unparalleled viewing experience.
8GB RAM & 64GB eMMC
Include 8 GB of RAM (option up to 32 GB) and 64 GB (option up to 512 GB) of eMMC storage, both with high-speed performance for quick data access and smooth multitasking.
Wi-fi 6, Bluetooth & 5G
Supports the latest connectivity technologies, including Wi-Fi 6 for faster wireless speeds, Bluetooth for seamless device pairing, and 5G for ultra-fast mobile data.
Technical Support
Provide technical support, development resources, and datasheets.
Application Scenarios
Suitable for a wide range of AI and edge computing applications, including robotics, private deployment of large language models (LLMs), edge AI computing, smart city infrastructure, smart home systems, and intelligent drone platforms.
Robots
Private Deployment of Large Models
Edge Computing
Smart City
Smart Home
Drone
Interfaces
Specifications
| KiwiPi 5 Pro | ||
|---|---|---|
| Basic Specifications | CPU | Rockchip RK3588 Quad-core ARM 64-bit CPU 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz 8nm process |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration | |
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications | |
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time | |
| DDR | LPDDR4X 8GB (option: 4/16/32GB) 2133MHz, 64-bit | |
| Storage | 64GB (option: 128/256/512GB) Support PCIe 3.0X4 M.2 2280 SSD hard drive expansion Support TF card expansion | |
| USB | 1*Type-C (Full function:USB3.1-OTG,DP ALT,PD) 4*USB 3.0 Host | |
| HDMI | 1*HDMI 2.1 (8K@60fps or 4K@120fps)，1*HDMI 2.0 input/output | |
| Wireless | WiFi-6 2.4/5 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.4 BLE 2.4Ghz and 5Ghz band channels, 2T2R | |
| Mobile Network | Support M.2 interface module Mobile EC200ACNLB-M.2 4G module Mobile RM500UCNVAA+ 5G module NANO SIM card interface | |
| Ethernet | 2×2.5G RJ45 Ethernet | |
| Audio | 3.5mm 4-segment headphone jack Supports onboard microphone input Left and right dual speaker interface | |
| RTC | Supports rechargeable button batteries | |
| Button | Loader button Flash button Reset button | |
| Expansion IO | 60Pin extension interface: 2 * MIPI-CSI 4Lane input and its matching IO 50Pin expansion interface: 1 * MIPI-DSI 4Lane/DP 2Lane/USB2.0 and its supporting IO 39Pin extension interface: 1 * MIPI-DSI 4Lane and its supporting IO | |
| OS | Linux 5.10 (option:Linux6.10) Android15/Ubuntu24.04/Debian12 | |
| Power Supply | Type-C PD input/output, default boost 12V/2A Support mainstream fast charging and boosting protocols | |
Customization
The Kiwi Pi team, bringing over 18 years of expertise in product design, research and development, and manufacturing, offers services including hardware, software, complete machine customization, and ODM/OEM.
