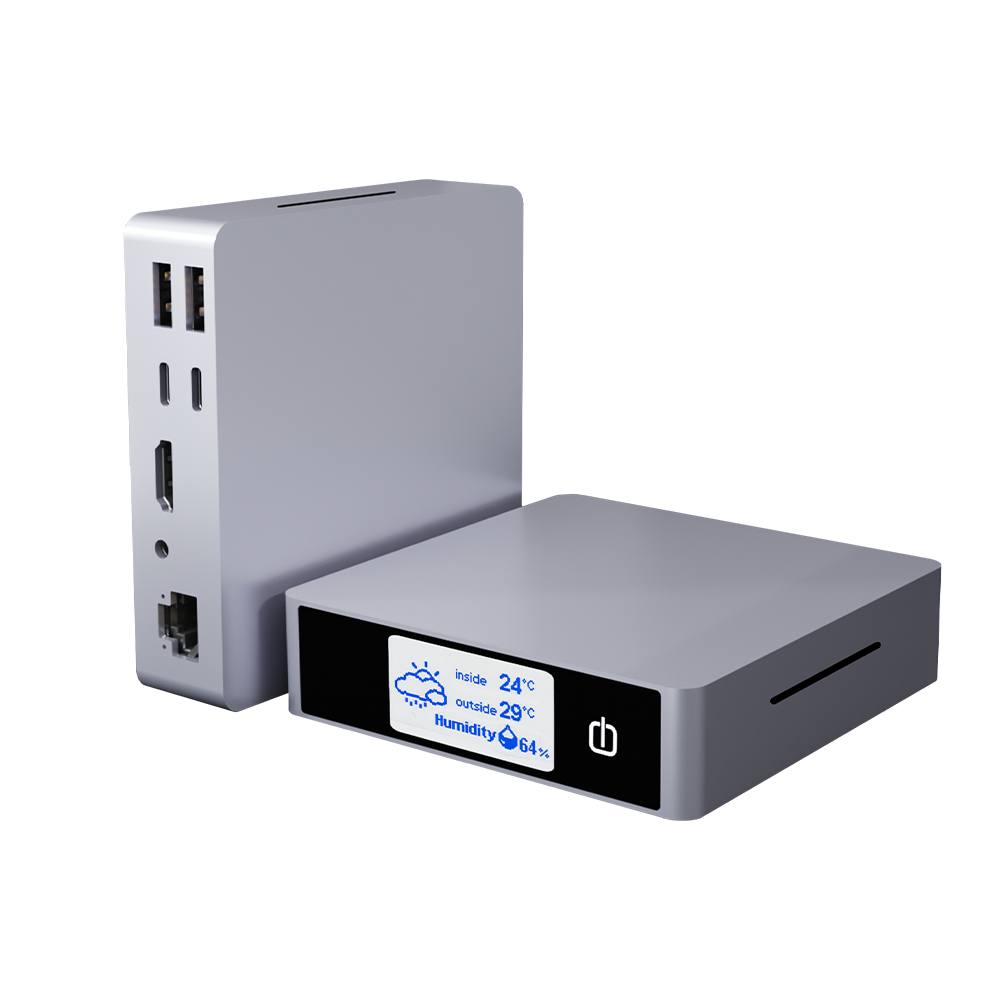

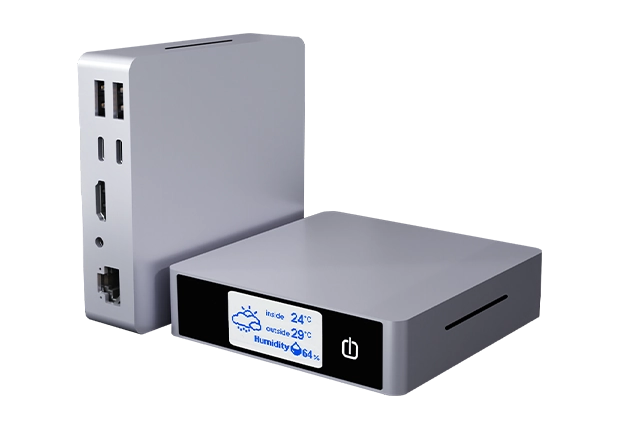

Kiwi Box 2
RK3588S AI Box
· Equipped with processor RK3588s
· Private deployment of AI large models
· Supports 32GB large memory
· 8K video encoding and decoding
· Compatible with multiple operating systems
· Full aluminum alloy shell for heat dissipation
· Rich expansion interfaces
· Comprehensive development materials
Kiwi Box 2
Rockchip RK3588S
RK3588S octa-core 64-bit flagship processor built with 8nm technology.
6 Tops Performance
Triple-core NPU delivering 6 TOPS of performance, which accelerates multiple data types.
8K Resolution
Supports 2K, 4K, and 8K resolutions for enhanced viewing quality.
8GB RAM & 128 GB eMMC
Include 8GB RAM and 128GB eMMC (also available options of 4/16/32 GB RAM and 64/256/512 GB eMMC).
Multimedia Performance
Super Ultra HD Multimedia Decoding
Technical Support
Available Documentation and Developer Resources
Application Scenarios
Suitable for a wide range of AI and edge computing applications, including robotics, private deployment of large language models (LLMs), edge AI computing, smart city infrastructure, smart home systems, and intelligent drone platforms.
Robots
Private Deployment of Large Models
Edge Computing
Smart City
Smart Home
Drone
Interfaces
Specifications
| Kiwi Box 2 | ||
|---|---|---|
| Basic Specifications | CPU | Rockchip RK3588S, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration | |
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications | |
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time | |
| DDR | 8GB (option: 4/16/32GB) | |
| Storage | 128GB (option: 64/256/512GB) | |
| Panel | 1.47-inch screen, resolution 320×172 | |
| USB Ports | 1×Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 1×USB3.0 Host 1×USB2.0 Host | |
| HDMI | HDMI2.1 (8K@60fps or 4K@120fps) | |
| Wireless | WiFi-6 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.0 BLE 2.4Ghz/5Ghz dual band channels, 1T1R | |
| Ethernet | 1000Mbps RJ45 | |
| Audio | 3.5mm headphone jack with stereo audio output and mic input 2× 8Ω/2W speakers inside | |
| RTC | 3V 3.4mAh, Lithium Rechargeable Battery | |
| Button | Capacitive touch power button with red/green LEDs | |
| Power Supply | Type-C PD 12V/2A | |
| OS | Linux 5.10 (option:Linux6.10) Android15/Ubuntu24.04/Debian12 | |
| Dimensions | 95mm × 95mm × 26mm | |
| Power Consumption | Idle: 0.84W (12V/60mA) Typical: 4.2W (12V/360mA) Max: 18W (12V/1500mA) | |
| External Interfaces | 1×Type-C 1×USB3.0 1×USB2.0 1×HDMI2.1 1×RJ45 1000Mbps Ethernet 1×3.5mm headphone jack | |
| Environmental Conditions | Operating Temperature: 0°C ~ 60°C Storage Temperature: -20°C ~ 70°C Humidity: 10% ~ 90% (non-condensing) | |
Customization
The Kiwi Pi team, bringing over 18 years of expertise in product design, research and development, and manufacturing, offers services including hardware, software, complete machine customization, and ODM/OEM.
