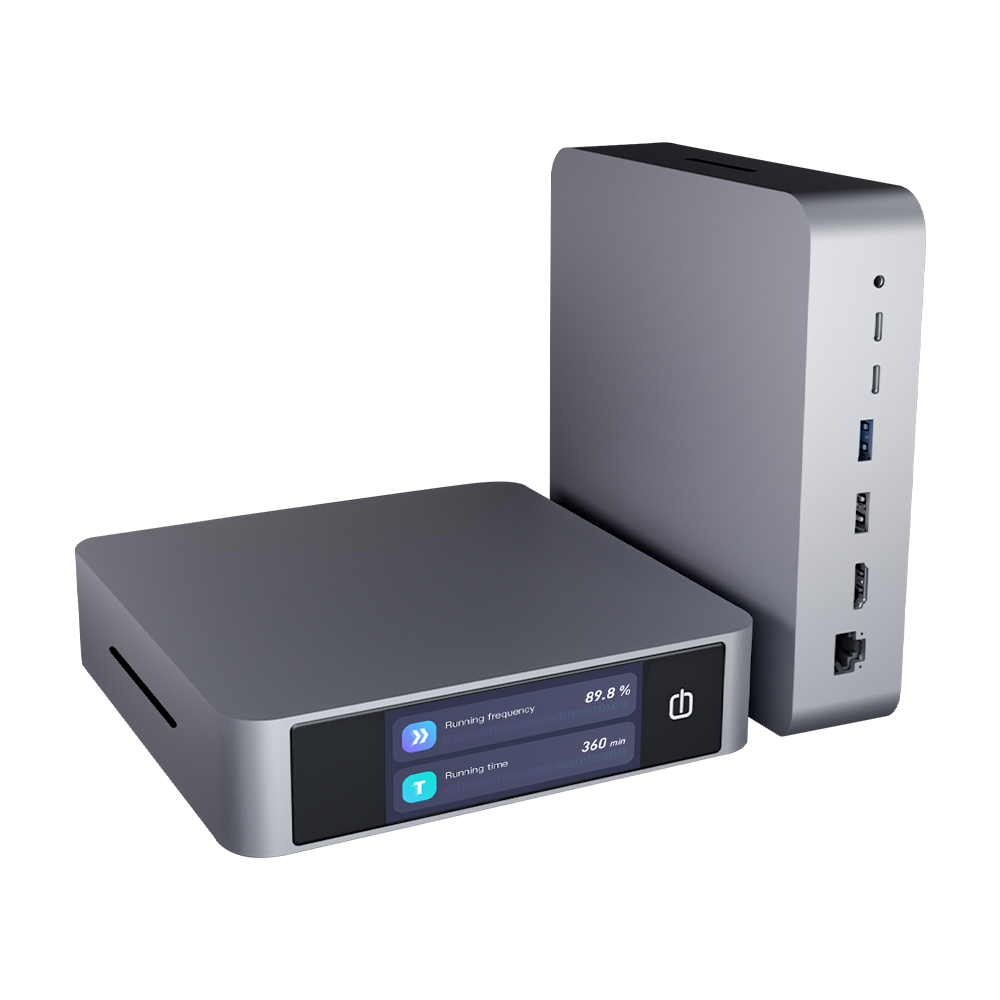

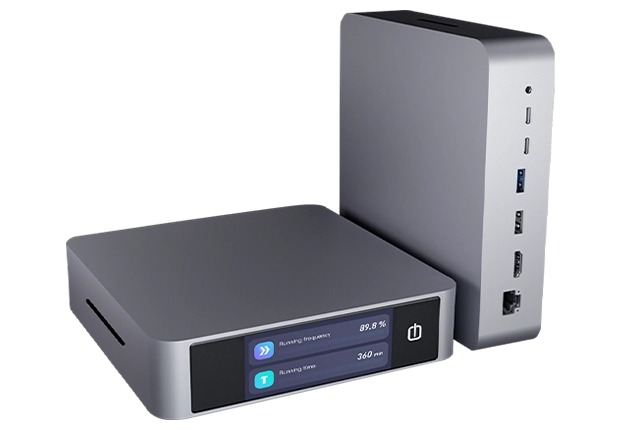

Kiwi Box 1
AI Box/Smart Box
· Rockchip RK3588, 8nm process
· Supports Multimodal Models
· ARM Mali-G610 MC4
· Intelligent Encoding Engine
· 8GB LPDDR4X 2133MHz, 64-bit (option: 4/16/32GB)
· eMMC5.1 128GB (option: 64/256/512GB)
· 160mm × 160mm × 38mm
· Operating Temperature: 0℃ ~ 60℃
Kiwi Box 1
RK3588 AI Box
The RK3588 AI Box is powered by Rockchip’s latest flagship AIoT SoC, built on an 8nm process. Its chipset combines a CPU with a big.LITTLE architecture, featuring four high-performance Cortex-A76 cores and four power-efficient Cortex-A55 cores, providing a good balance of performance and energy efficiency.
AI Processor RK3588
The RK3588 is Rockchip's next-generation flagship AIoT chip, built on an 8nm LP process. It features an eight-core 64-bit CPU with a clock speed of up to 2.4GHz, an integrated ARM Mali-G610 MP4 quad-core GPU, and a built-in AI accelerator NPU, providing 6 TOPS of computing power. The powerful RK3588S delivers optimized performance for various AI applications.
Private Deployment
Supports private deployment ofultra-large-scale parametermodels based on the Transformerarchitecture, such as the Gemmaseries, ChatGLM series, Qwenseries, Phi series, and other largelanguage models.
8K video encoding and decoding
Supports 8K@60fps VP9 decoding and 8K@30fps H.264 encoding, with simultaneous encode/decode capabilities. It can handle up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding. The high-resolution, multi-channel decoding accelerates video-based AI training and inference, improving visual analysis accuracy and optimizing algorithm training.
Mali-G610 GPU
High-performance graphics for UI, gaming, and AI workloads
Image Processing
It features a built-in 16MP image signal processor (ISP) that supports low-light noise reduction, RGB-IR sensors, and HDR up to 120dB. The AI-ISP enhances image quality in low-noise conditions. MIPI-CSI input is supported.
High-Speed Connectivity
PCIe, USB 3.0, Gigabit Ethernet for expansion
Multiple Operating Systems
Supports multiple operating systems including Android, Ubuntu, and Debian.
Development Materials
Supports providing a secure and stable development environment. Complete source code, tutorials, technical documentation, and tools are provided to simplify the development process.
6 TOPS NPU Computing Power
Built-in NPU with computing power of up to 6 TOPS, supporting INT4/INT8/INT16/FP16/BF16/TF32 mixed operations. Capable of intelligent data processing, voice recognition, and image analysis, meeting the edge computing AI application needs of most terminal devices.
Application Scenarios
It is extensively utilized in many sectors such as facial recognition, robotics, access control gates, intelligent security systems, smart network cameras, and additional fields.
Edge Computing
Private Deployment of Large Models
Smart Commercial Display
Industrial Control Host
Smart Gateway
Automotive Electronics
Interfaces
Specifications
| Kiwi Box 1 | ||
|---|---|---|
| Basic Specifications | CPU | Rockchip RK3588, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration | |
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications | |
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time | |
| DDR | 8GB LPDDR4X 2133MHz, 64-bit (option: 4/16/32GB) | |
| eMMC5.1 | 128GB (option: 64/256/512GB) | |
| Storage | PCIe3.0 M.2 slot inside, suport 2280 NVME SSD Mirco SD card slot inside, suport TF card storage expansion | |
| Panel | 3.16-inch capacitive touch screen, resolution 820×320 | |
| USB | 2× Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 1×USB3.0 Host 1×USB2.0 Host | |
| HDMI | HDMI2.1 (8K@60fps or 4K@120fps) | |
| Wireless | WiFi-6 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.0 BLE 2.4Ghz/5Ghz dual band channels, 1T1R (option: M.2 slot inside,suport 2230 PCIe wireless module) | |
| Ethernet | 1000Mbps RJ45 | |
| Audio | 3.5mm headphone jack with stereo audio output and mic input 2× 8Ω/2W speakers inside | |
| RTC | CR1220 Lithium Battery, 3V/38mAh | |
| Button | Capacitive touch power botton with red/green LEDs | |
| Power Supply | Type-C PD 12V/2A | |
| OS | Linux 5.10 (option:Linux6.10) Android12/Ubuntu22.04/Debian11 | |
| Dimensions | 160mm × 160mm × 38mm | |
| Weight | 820g | |
| Power Consumption | Idle: 1.35W (12V/110mA) Typical: 4.8W (12V/400mA) Max: 20W (12V/1700mA) | |
| External Interfaces | 2×Type-C 1×USB3.0 1×USB2.0 1×HDMI2.1 1×RJ45 1×3.5mm headphone jack | |
| Environmental Conditions | Operating Temperature: 0℃ ~ 60℃ Storage Temperature: -20℃ ~ 70℃ Humidity: 10% ~ 90% (non-condensing) | |
Customization
The Kiwi Pi team, bringing over 18 years of expertise in product design, research and development, and manufacturing, offers services including hardware, software, complete machine customization, and ODM/OEM.
