KiwiPi 5
RK3588S Single-Board Computer
• Powered by the RK3588S octa-core processor
• Up to 32GB of RAM
• Various deep learning frameworks
• Private deployment of large AI models
• Supports 8K high-definition video encoding and decoding
• Multiple operating systems
• Features extensive expansion interfaces for peripheral connectivity
• Provides comprehensive development resources
KiwiPi 5
RK3588S Single-Board Computer
Built using 8nm technology, it features an ARM Mali-G610 MP4 quad-core GPU and a 6TOPs AI NPU. Its architecture ensures high performance combined with energy efficiency, ideal for demanding applications.
Rockchip RK3588S
Flagship performance with 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz
6 TOPS AI Engine
Advanced NPU for AI, vision, and edge computing
8K Video Processing
Supports 8K decode and 4K encode for media applications
INT8 neural network inference
INT8 neural network inference acceleration on KiwiPi 5
Multiple operating systems
Multiple operating systems supported by KiwiPi 5
Expansion interfaces
Expansion interfaces available on the KiwiPi 5
Private AI model
Private AI model deployment on KiwiPi 5
Developer-Ready Ecosystem
Linux, Android support with rich SDK resources
6 TOPS NPU
KiwiPi 5 with a 6 TOPS NPU for AI acceleration
Application Scenarios
Suitable for a wide range of AI and edge computing applications, including robotics, private deployment of large language models (LLMs), edge AI computing, smart city infrastructure, smart home systems, and intelligent drone platforms.
Robots
Private Deployment of Large Models
Edge Computing
Smart City
Smart Home
Drone

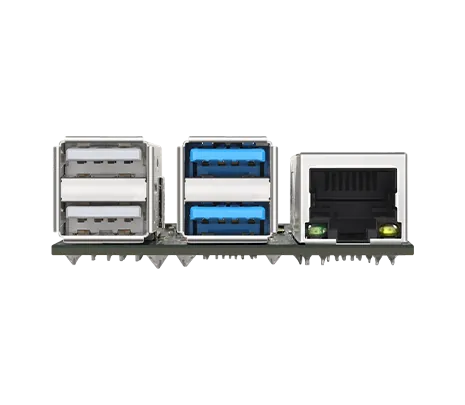

Interfaces
Specifications
| KiwiPi 5 | ||
|---|---|---|
| Basic Specifications | CPU | Rockchip RK3588S, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration |
|
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications |
|
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 |
|
| DDR | 8GB (option: 4/16/32GB) | |
| Storage | 64GB (Option:128GB/256GB/512GB) | |
| USB | 1*Type-C (Full function: USB 3.1-OTG,DP ALT,PD) 2*USB 3.0 Host 2*USB 2.0 Host |
|
| Video Output | HDMI2.1（Maximum resolution 8K@60fps） Type-C DP1.4（maximum resolution 8K@30fps） Mipi-DSI 4-Lane（maximum resolution 2560*1600@60fps) |
|
| Video Input | 2 * MIPI-CSI 4Lane | |
| HDMI | HDMI2.1 (8K@60fps or 4K@120fps) | |
| Wireless | WiFi 6 (IEEE802.11 a/b/g/n/ac/ax up to 600.4Mbps) BT5.4 2.4Ghz and 5Ghz band channels, 2T2R |
|
| Ethernet | 1000Mbps RJ45 | |
| Audio | 3.5mm headphone jack with stereo audio output and mic input On board mic input |
|
| Expansion Port | 26Pin header including Power output , I/O,power on/off key,Debugging I/O Pin can be program to UART, PWM, I2C, SPI, CAN, GPIO etc |
|
| Button | Recovery key Reset key |
|
| LED | Red/Green LEDs | |
| Power Supply | Type-C PD 12V/2A Support QC2.0/PD3.1/BC1.2 and The third party charging protocols |
|
| Supported OS | Linux 5.10 (option:Linux6.10) Android15, Debian12, Ubuntu24.04 |
|
| Dimension | 56mm(L) x 85mm(W) | |
Customization
The Kiwi Pi team, bringing over 18 years of expertise in product design, research and development, and manufacturing, offers services including hardware, software, complete machine customization, and ODM/OEM.
