Kiwi Pi 5 Pro
Rockchip RK3588 Quad-Core A76+A55 ARM Mali-G610 MC4，6.0 TOPs NPU
Rockchip RK3588(8nm Lp process)
KiwiPi 5 Pro is powered by Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.2GHz), 4 Cortex- A55(1.8GHz) and independent NEON coprocessor.
Artificial Intelligence NPU
Embedded 6TOPS arithmetic NPU, supporting INT4/INT8/INT16/FP16 hybrid computing, suitable for developing Al applications.
8K video decoding
Experience stunning performance with an 8-core CPU built on an advanced 8nm process, delivering remarkable 8K video decoding, combining clear picture quality and smooth experience.
New LPDDR 4X memory standard
Equipped with 4GB/8GB/16GB/32GB LPDDR4X. Compared with LPDDR4X standard brings higher data rate and lower power consumption, which better meets the needs of large applications and complex 3D games.
Mobile Network, 4/5G Module
This board is compatible with M.2 interface modules, featuring support for the Mobile EC200ACNLB-M.2 4G module and the Mobile RM500UCNVAA+ 5G module. It also includes an interface for NANO SIM cards, enhancing connectivity options.
Equipped with an M.2 M-Key slot (Pcle 3.0 4- Lane)
Supports PCIe 3.0 x4 M.2 2280 SSD hard drive expansions for lightning-fast performance. Additionally, it features TF card expansion, providing versatile storage options for all your needs.
Dual Gigabit Ethernet Ports
Kiwi Pi 5 Pro supports Wi-Fi 6, featuring dual-band capabilities at 2.4GHz and 5GHz with compliance to IEEE 802.11 a/b/g/n/ac/ax standards. It also includes Bluetooth 5.4 with BLE support, ensuring fast and reliable connectivity.

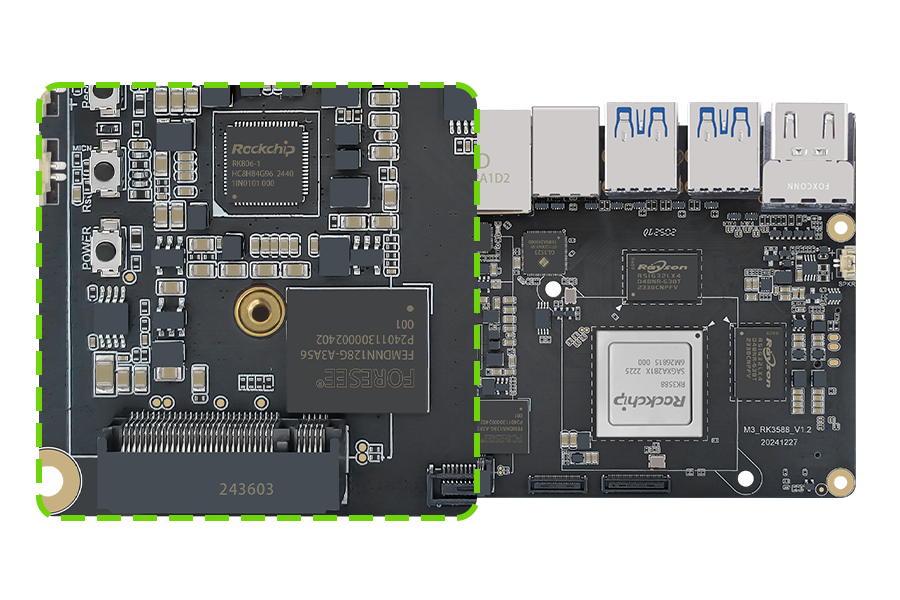

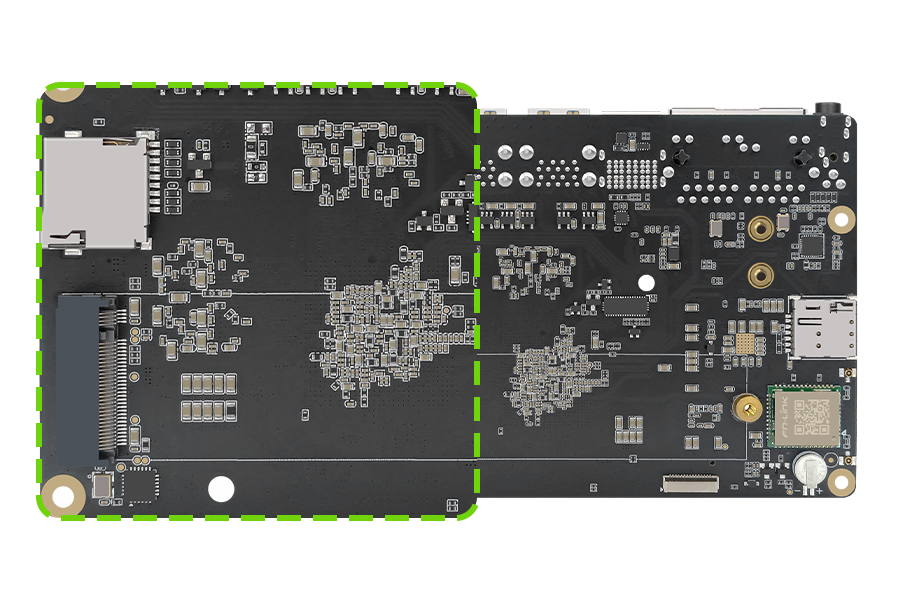

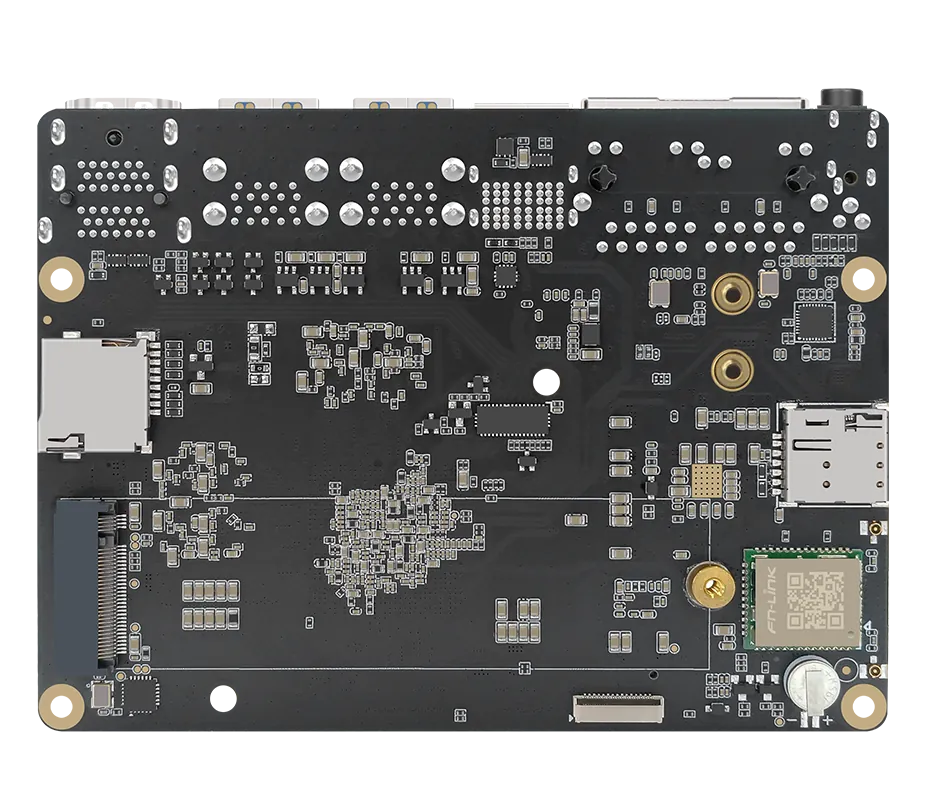

Product display
This board features Type-C PD input/output with a default boost of 12V/2A. It is designed to support a variety of mainstream fast charging and boosting protocols, ensuring efficient and rapid power delivery.
Support Multiple Operating Systems
Linux 5.10 (option:Linux6.10),Android15/Ubuntu22.04/Debian11
Extensive Application Scenarios
Kiwi Pi-5 Pro can be used in ARM PCs, mini PCs, NAS, edge computing, cloud servers, smart NVRs, and industrial control systems.
-
AI Robot
-
Control Systems
-
Industrial Gauge
-
Edge Computing
Basic parameters
| Specifications | CPU | Rockchip RK3588 Quad-core ARM 64-bit CPU 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz 8nm process |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration |
|
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications |
|
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time |
|
| DDR | LPDDR4X 8GB (option: 4/16/32GB) 2133MHz, 64-bit |
|
| eMMC5.1 | 128GB (option: 64/256/512GB) Support PCIe 3.0X4 M.2 2280 SSD hard drive expansion Support TF card expansion |
|
| USB | 1*Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 4*USB 3.0 Host |
|
| HDMI | 1*HDMI 2.1 (8K@60fps or 4K@120fps)，1*HDMI 2.0 input/output |
|
| Wireless | WiFi-6 2.4/5 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.4 BLE 2.4Ghz and 5Ghz band channels, 2T2R |
|
| Mobile Network | Support M.2 interface module Mobile EC200ACNLB-M.2 4G module Mobile RM500UCNVAA+ 5G module NANO SIM card interface |
|
| HDMI | 1*HDMI TX 2.1, 1*HDMI RX 2.0 |
|
| Wireless | WiFi-6 2.4/5 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.4 BLE 2.4Ghz and 5Ghz band channels, 2T2R |
|
| Ethernet | 2×2.5G RJ45 Ethernet |
|
| Audio | 3.5mm four segment headphone jack Support onboard microphone input interface Left and right dual speaker interface |
|
| RTC | Supports rechargeable button batteries |
|
| Button | Loader button Flashing button Reset button |
|
| Expansion IO | 60Pin extension interface: 2 * MIPI-CSI 4Lane input and its matching IO 50Pin expansion interface: 1 * MIPI-DSI 4Lane/DP 2Lane/USB2.0 and its supporting IO 39Pin extension interface: 1 * MIPI-DSI 4Lane and its supporting IO |
|
| OS | Linux 5.10 (option:Linux6.10) Android15/Ubuntu22.04/Debian11 |
|
| Power Supply | Type-C PD input/output, default boost 12V/2A Support mainstream fast charging and boosting protocols |
