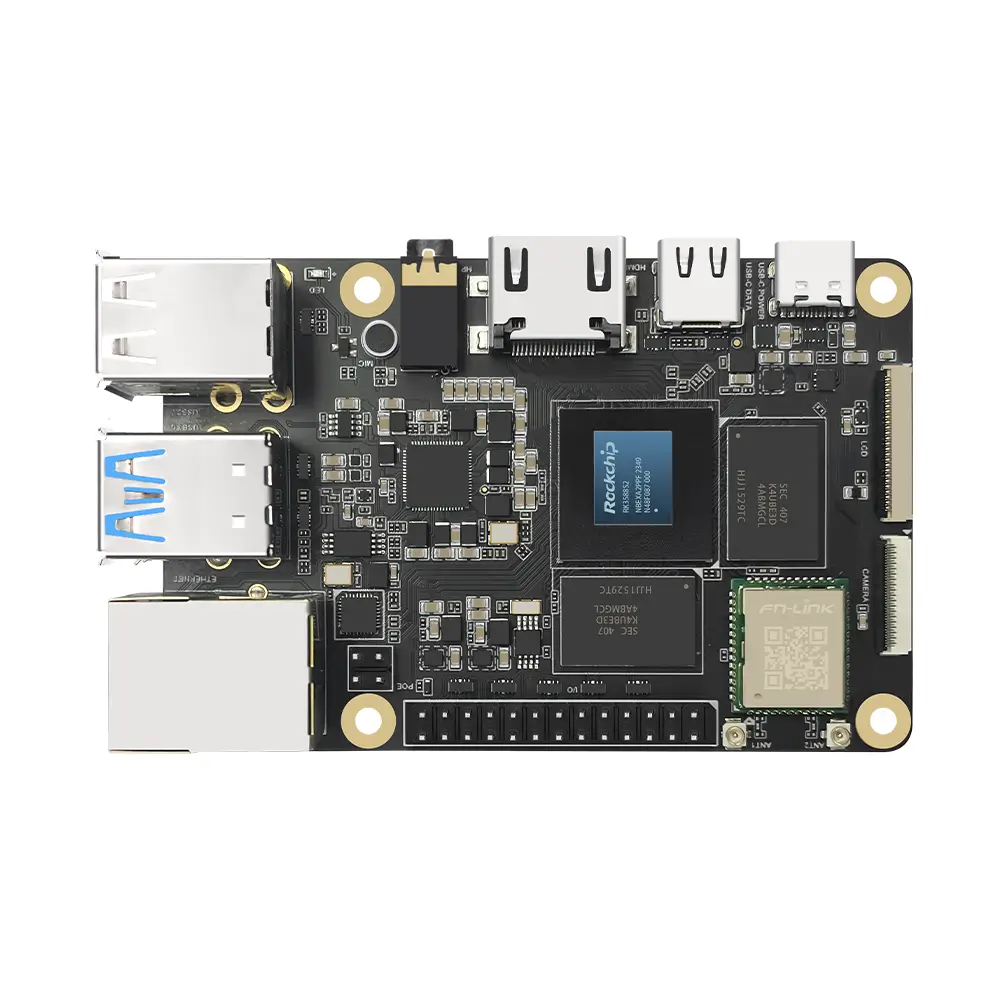

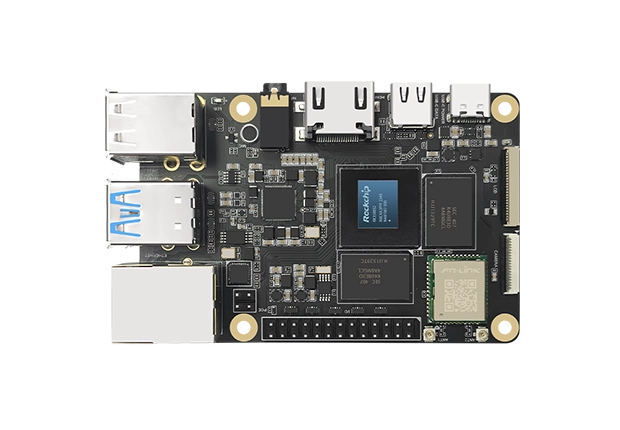

Kiwi Pi 5

5 reviews
Sold 178
|
2 live visitors

$129.00 USD $149.00 USDSave $20 USD

Accessories
Configuration
4+64GB
8+128GB
Only 7 Left at This Price !
Quote
Accurate positioning
Motion Recognition
Long-lasting battery life
Smart connection
Product Description

The alternative to Raspberry Pi features an RK3588S octa-core 64-bit flagship processor. Built with 8nm technology, it incorporates an ARM Mali-G610 MP4 quad-core GPU and a 6TOPs AI NPU. Its architecture provides high performance and energy efficiency, making it suitable for intensive applications.

Packing list

  • High-Performance RK3588S CPU

    The alternative to Raspberry Pi features an RK3588S octa-core 64-bit flagship processor. Built with 8nm technology, it incorporates an ARM Mali-G610 MP4 quad-core GPU and a 6TOPs AI NPU. Its architecture provides high performance and energy efficiency, making it suitable for intensive applications.

    High-Performance RK3588S CPU
  • 8K Video Performance

    Experience ultra-high-definition visuals with 8K video performance. This capability ensures stunning clarity and detail, making it perfect for multimedia applications, digital signage, and high-end video projects.

    8K Video Performance
  • Powerful NPU (Neural Processing Unit)

    Equipped with a 6 TOPS (Tera Operations Per Second) NPU, this single board computer is optimized for machine learning and AI applications. The NPU accelerates neural network processing, enhancing the performance of AI tasks such as image recognition, natural language processing, and more.

    Powerful NPU (Neural Processing Unit)
  • Ample RAM and ROM

    With large 4 to 32GB LPDDR4 RAM and 8 to 512GB eMMC on board capacities, this device ensures smooth multitasking and ample storage for applications and data. The expanded memory supports complex computations and large datasets, improving overall system performance.

    Ample RAM and ROM
  • Machine Learning Capabilities

    The integration of powerful processing and NPU enables advanced machine learning capabilities. This makes the alternative to Raspberry Pi ideal for developing and deploying AI models in various fields such as robotics, automation, and intelligent systems.

    Machine Learning Capabilities

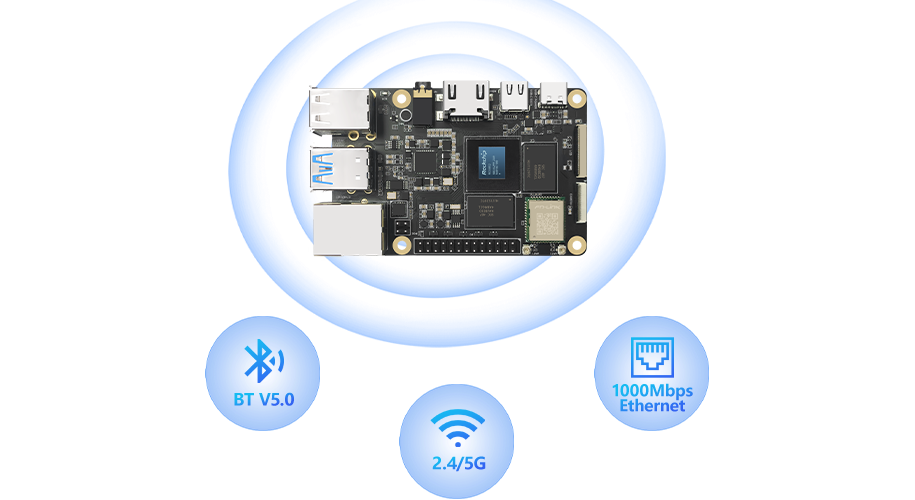

  • Strong Network Communication Capability

    The single board computer gives users access to a variety of high-speed, low-latency network communication channels for dependable, continuous network connectivity.

    Strong Network Communication Capability

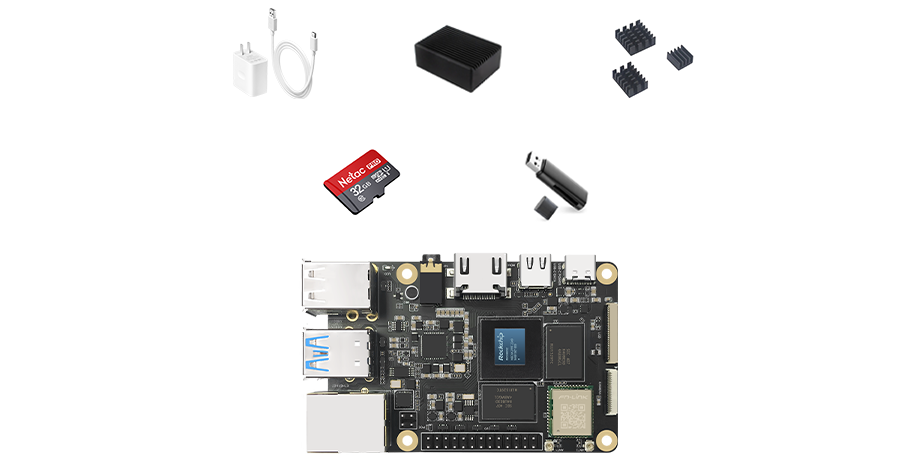

  • Accessories Available

    A variety of accessories are available to enhance functionality and expand capabilities, including cases, power supplies, heat sink and expansion boards.

    Accessories Available
  • Abundant Peripheral Expansion Interface

    It can be configured as RS232, GPIO, SPI, I2C, PWM, and other industrial communication interfaces because it is completely compatible with the Raspberry Pi interface definition. Because of these characteristics, it is a perfect solution for scenarios involving programming instruction and industrial control interface extension requirements.

    Abundant Peripheral Expansion Interface
  • Various Technical Data Sheets

    We offer comprehensive technical data sheets that include reference design data, technical documents, technical source code, API interface, and SDK development tools. This helps customers swiftly and easily create customized products that are independent and under control, while also streamlining secondary development.

    Various Technical Data Sheets
Basic parameters
Basic parametersCPU

Rockchip RK3588S, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz

GPU

ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration

NPU

Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications

VPU

DDR

Storage

eMMC 64GB (Option:128GB/256GB/512GB) MicroSD (TF) Card Slot

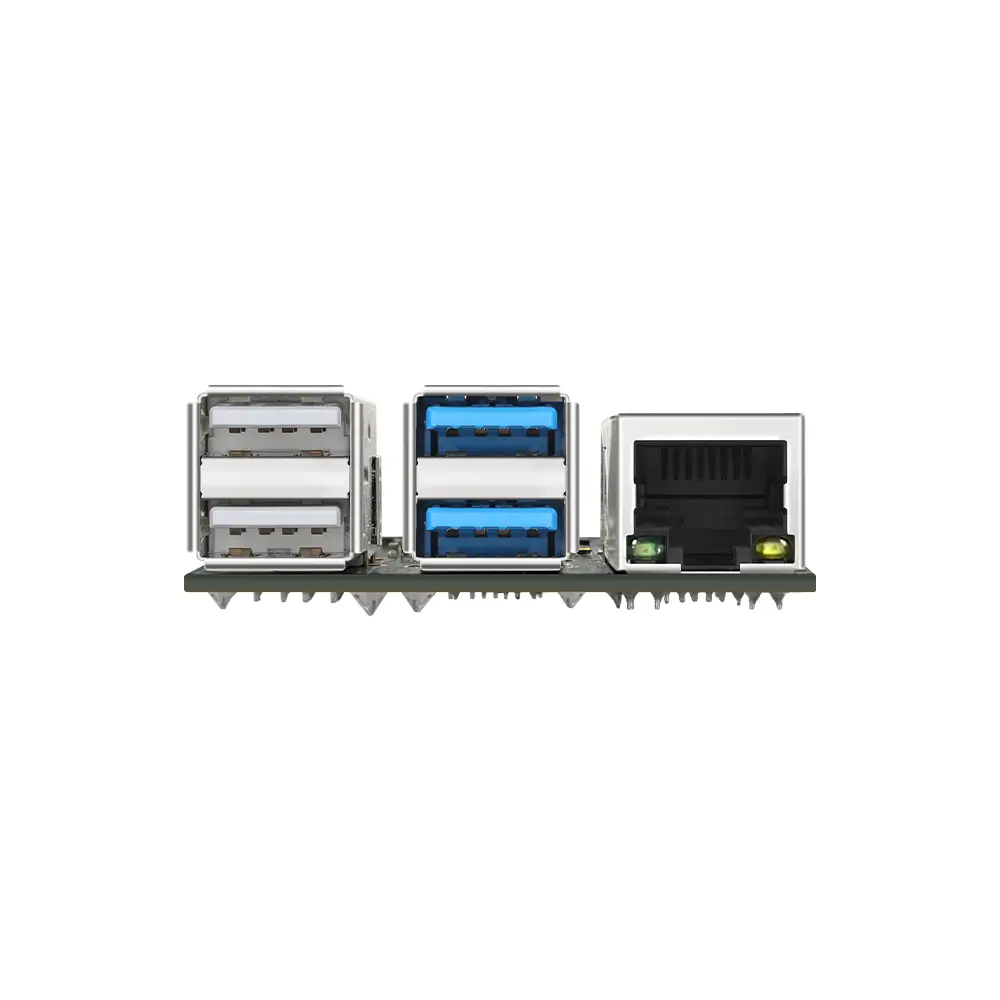

USB

1*Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 2*USB 3.0 Host 2*USB 2.0 Host

Video Output

HDMI2.1(Maximum resolution 8K@60fps) Type-C DP1.4(maximum resolution 8K@30fps) Mipi-DSI 4-Lane(maximum resolution 2560*1600@60fps)

Video Iutput

2 * MIPI-CSI 4Lane

Wireless

WiFi 6 (IEEE802.11 a/b/g/n/ac/ax up to 600.4Mbps) BT5.4 2.4Ghz and 5Ghz band channels, 2T2R

Ethernet

1000Mbps RJ45

Audio

3.5mm headphone jack with stereo audio output and mic input On board mic input

Expansion Port

26Pin header including Power output , I/O,power on/off key,Debugging I/O Pin can be program to UART, PWM, I2C, SPI, CAN, GPIO etc

Button

Recovery key Reset key

LED

Red/Green LEDs

Power Supply

Type-C PD 12V/2A Support QC2.0/PD3.1/BC1.2 and The third party charging protocols

Supported OS

Linux 5.10 (option:Linux6.10) Android12, Debian11, Ubuntu22.04

Dimension

56mm(L) x 85mm(W)

Weight

300Grams

  • Kiwi Pi 5

    Powered by Rockchip Rk3588 new-gen 8-core 64-bit processor, the computer can be configured with up to 32GB RAM and 256G eMMC.Capable of 8K video encoding and decoding, it provides abundant interfaces, supporting multiple hard disks, Gigabit Ethernet, WiFi6,5G/4G expansion and a variety of videos input and output.
  • Kiwi Box 1

    Powered by Rockchip RK3588 new-gen 8-core 64-bit processor, the computer can be configured with up to 32GB RAM and 256G eMMC. Capable of 8K video encoding and decoding, it provides abundant interfaces, supporting multiple hard disks, Gigabit Ethernet, WiFi6, 5G/4G expansion and a variety of videos input and output.
  • Kiwi Box 2

    Powered by Rockchip RK3588 new-gen 8-core 64-bit processor, the computer can be configured with up to 32GB RAM and 256G eMMC. Capable of 8K video encoding and decoding, it provides abundant interfaces, supporting multiple hard disks, Gigabit Ethernet, WiFi6, 5G/4G expansion and a variety of videos input and output.
  • Kiwi Box 1Plus

    Powered by Rockchip RK3588 new-gen 8-core 64-bit processor, the computer can be configured with up to 32GB RAM and 256G eMMC. Capable of 8K video encoding and decoding, it provides abundant interfaces, supporting multiple hard disks, Gigabit Ethernet, WiFi6, 5G/4G expansion and a variety of videos input and output.
