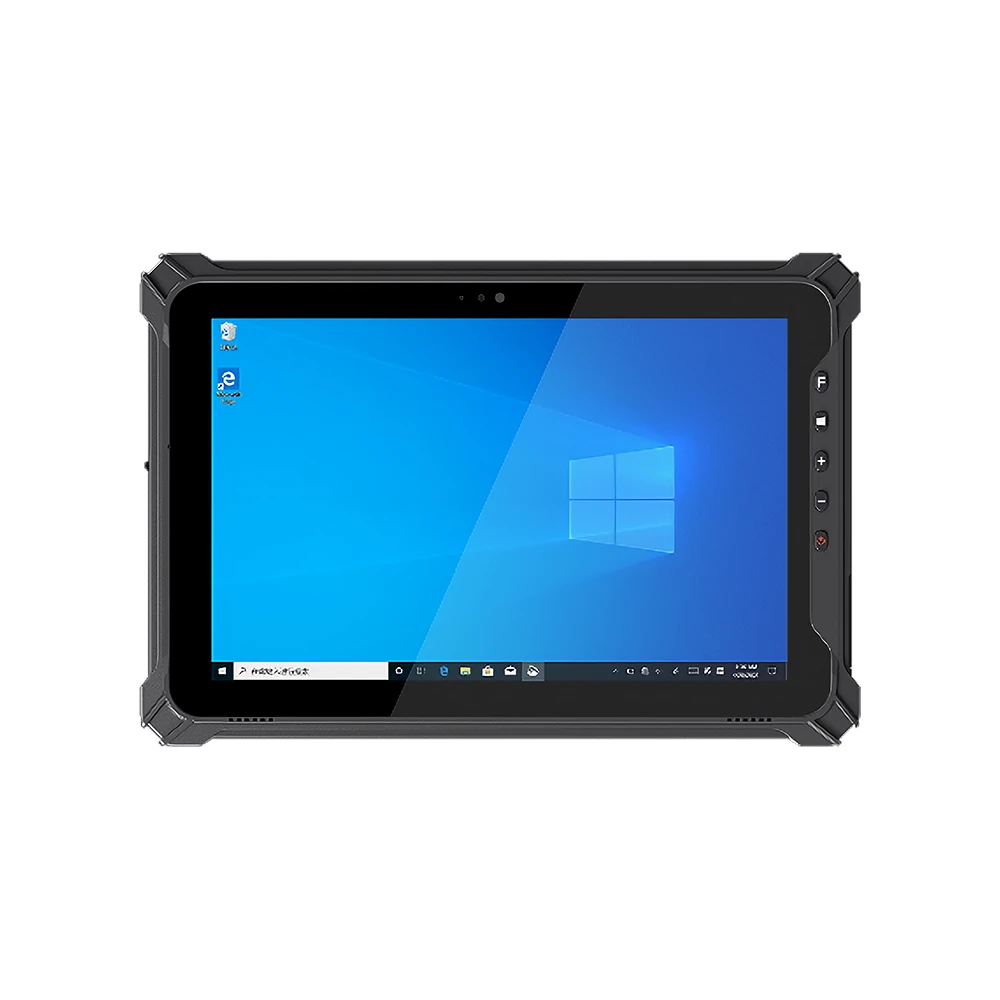

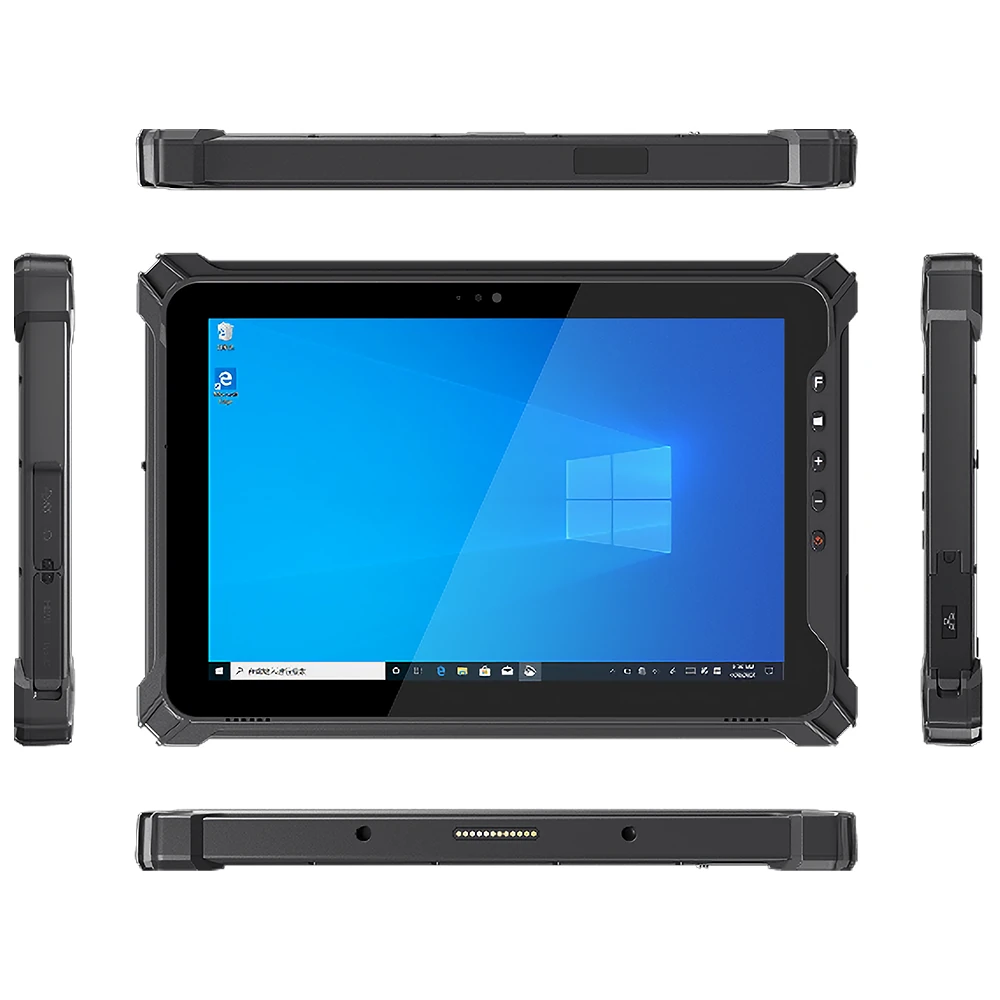

Rugged Windows Tablet 10.1
|
$0.00 USD $0.00 USDSave $0 USD
Accessories
Configuration
Quote
Accurate positioning
Motion Recognition
Long-lasting battery life
Smart connection
Product Description
The 10-inch Rugged Windows Tablet is powered by an octa-core CPU, ensuring high performance for demanding industrial tasks. Built to endure harsh conditions, it is IP68 waterproof, making it suitable for use in wet or rainy environments without risk of damage. This industrial-grade Linux 10-inch Windows Rugged Tablet features a compact 10-inch display encased in durable PC+ABS material.
Packing list
Octa-core CPU
The 10-inch Rugged Windows Tablet is driven by an octa-core CPU, providing high performance for demanding industrial applications.

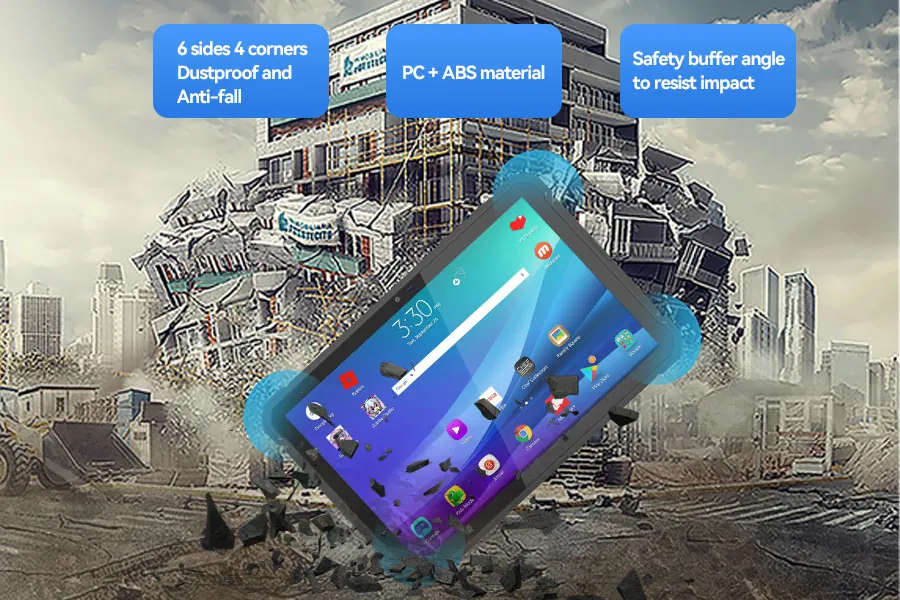

Anti-fall
The industrial 10-inch Windows Rugged Tablet features a compact 10-inch screen housed in a tough PC+ABS material casing. This material is known for its durability and resistance to impact, making the tablet rugged and suitable for use in industrial settings. Its anti-fall design ensures that accidental drops or impacts won't damage the device.

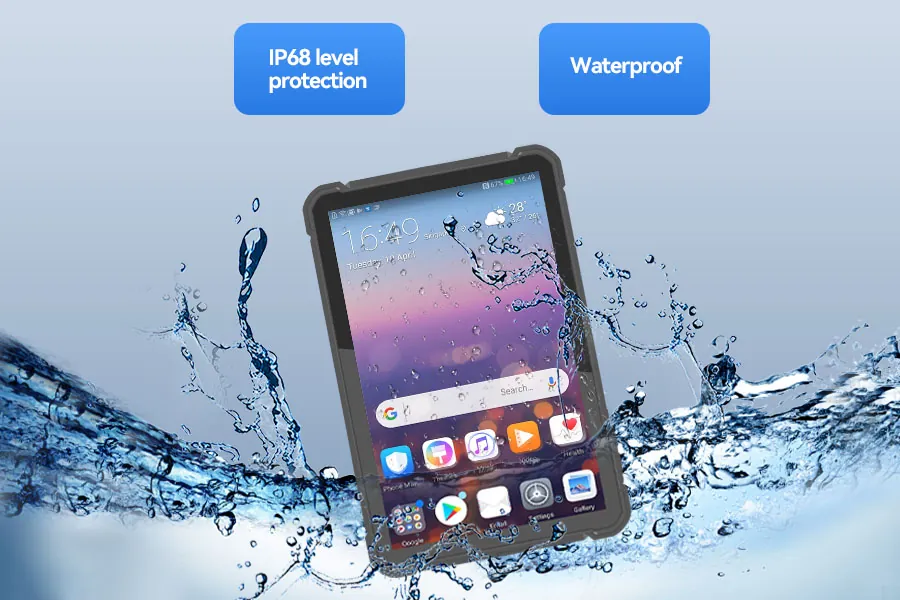

Waterproof
Designed to withstand the elements, this tablet is IP68 waterproof, allowing it to be used in wet or rainy conditions without the risk of damage.
Level 6 Dust-proof, Impermeable to Dust
The rugged tablet has good sealing performance and is suitable for outdoor operations when exposed to wind. Even in bad weather such as sandstorms and rainstorms, the device can still operate normally.

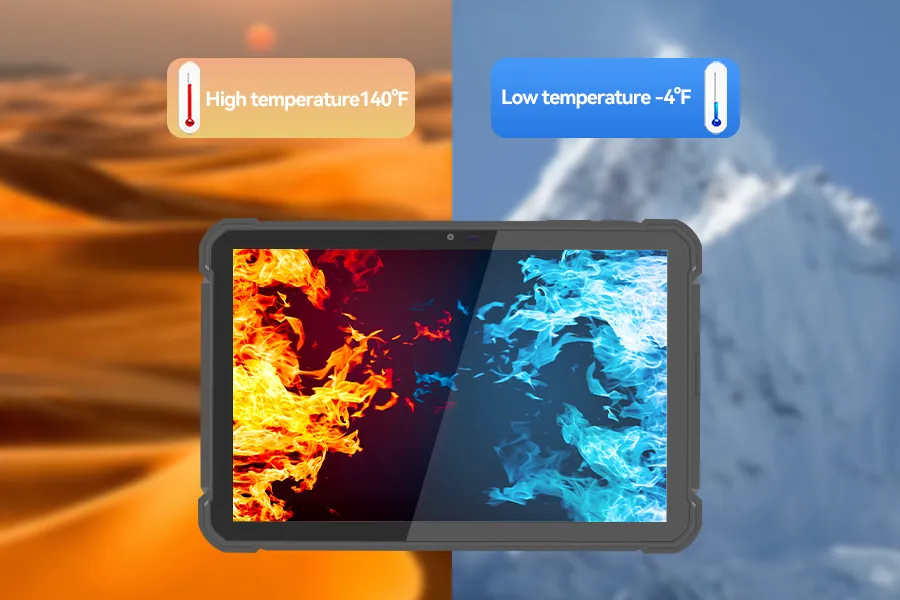

Temperature Resistance
PC+ABS exhibits good heat resistance, allowing it to maintain its mechanical properties over a wide temperature range. This makes it suitable for use in both hot and cold environments without compromising performance.
10.1 inch IPS Capacitive Screen
10.1" FHD+ screen, the screen material is IPS. 14.4:9 aspect ratio, 1920 x 1200 resolution makes every detail lifelike, bring you the ultimate visual feast.

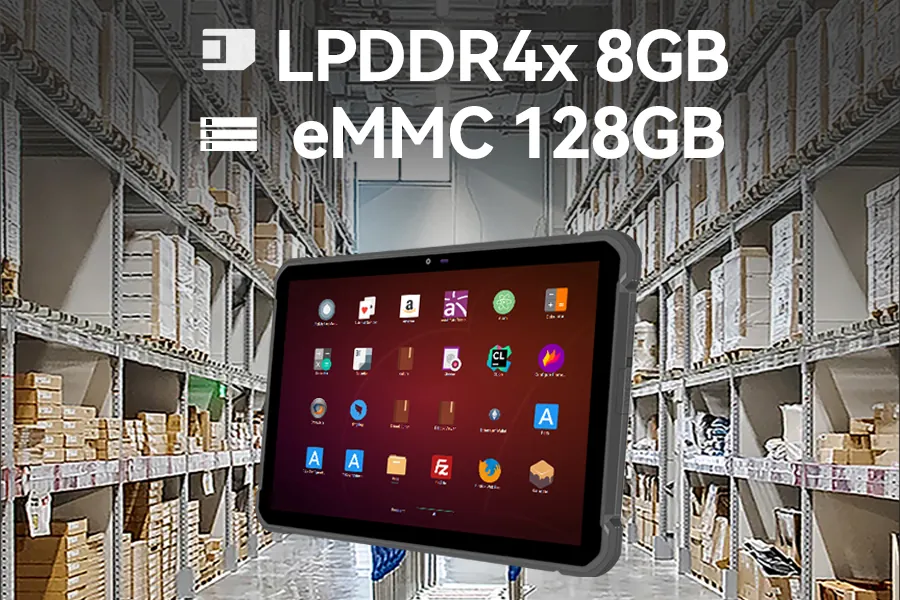

8GB RAM and 128GB ROM and TF card Expandable
With 8GB of RAM and 128GB of internal storage (ROM) and expandable memory support up to 1TB with Micro SD card, it provides ample memory and storage space for running multiple applications and storing data.

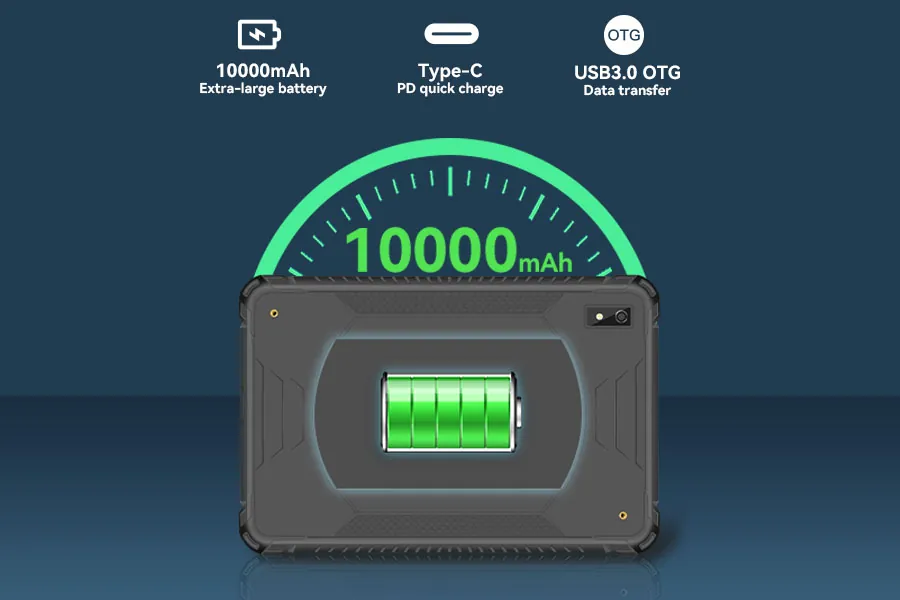

Long-lasting Battery
With a large 10000mAh battery capacity, this tablet ensures long hours of uninterrupted usage, perfect for extended work shifts or field operations where access to power sources may be limited.
5MP / 13MP Dual Camera
The 10.1-inch Windows Tablet PC has a 13MP rear camera and a 5MP front-facing camera, enabling users to capture high-quality images and videos for documentation or communication.
Expandability
With options to integrate additional features such as a barcode scanner, fingerprint reader, or NFC reader, enhancing its functionality for specific industrial tasks.

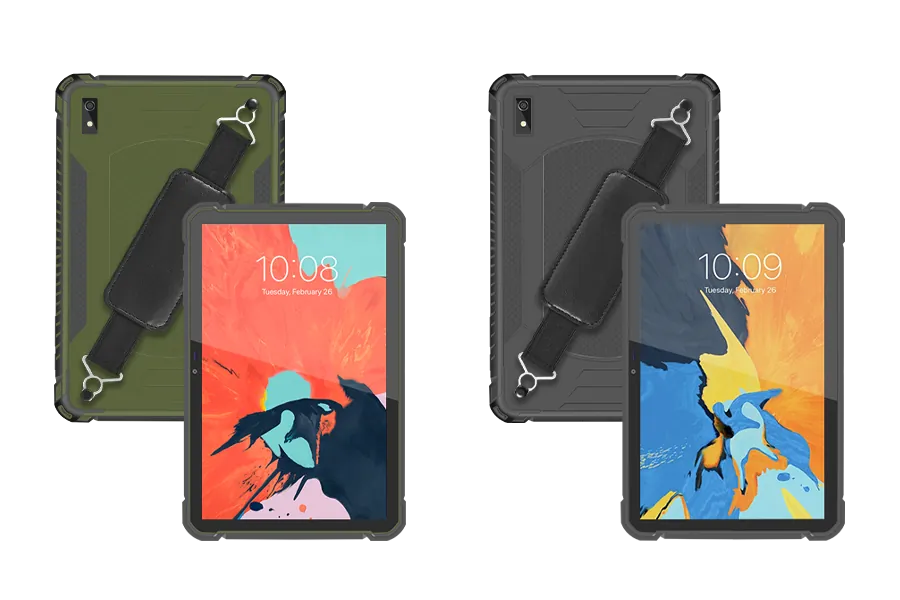

Color Option
Available in a variety of attractive colors for options with Classic Black, Forest Green, Bright Orange, etc.
Comprehensive Interfaces
The 10-inch Windows Rugged Tablet features various interfaces to support a wide range of peripherals and accessories, including a USB-C port for fast charging and data transfer, a MicroSD card slot, speakers, cameras, Wi-Fi, and optional 4G.
Basic parameters
| Basic parameters | Speaker | 8Ω/1W Speaker *2 |
| Microphone | Single MIC, Sensitivity: -42db, Output Impedance 2.2kΩ | |
| Sensor | G-sensor | |
| Wi-Fi | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI | |
| Bluetooth | BT5.0 (BLE) class1 Transmited distance：10m | |
| 4G | LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 Optional, EC25-AF, 750-VA, 750-VSA | |
| GPS | Supports GPS (L1 1.575GHz C/A code), GLONASS (L1 1.602GHz), Cold start time is not more than 60s | |
| CPU | Intel JASPER LAKE N5100 processor, 4-core, 4-thread, embedded 4 MB SmartCache, TDP 6W, Maximum dominant frequency 2.8GHz | |
| GPU | Intel® HD Graphics Gen 11 LP | |
| RAM | 8GB DDR (upgrade options up to 32GB) | |
| Storage | 128GB eMMc (upgrade options up to 512GB) | |
| Display | Type: FHD Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 700cd/㎡ | |
| Touch Pannel | 10 points tempered glass capacitive screen G+G, hardness 7H | |
| OS | Windows | |
| I/O Interface | USB3.0 *1 (USB A port, HOST data transmission), Type C 3.1 *1 (Charging and Data transmission, Full function Type-C) ∮3.5mm Standard earjack *1 HDMI 2.0a mini *1 Three in one card holder (Micro SD card, up to 512GB; Nano SIM *1) 12PIN Pogo Pin *1 (Charging interface, USB signal connection base) | |
| Front | 5MP | |
| Rear | 8.0MP, support auto focus, with flashlight function | |
| Battery | Removable Li-polyment Battery 10000mAh/3.7V, 8 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) | |
| RTC | Built-in polymer lithium-ion battery, with a capacity of 3V/1mAh | |
| Adapter | PD Fast Charge Adapter +Type-C Data Cable（1m) | |
| Type | 10.1-inch Rugged Tablet | |
| Material | PC+10%GF | |
| Dimension | 274.9*188.7*23.1 mm | |
| Weight | 1140g | |
| Color | Black | |
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Key *1 (Barcode Scanning), When there is no scanning function, it can be customized Home Key *1 | |
| RJ45 network port (10/100M adaptive) Standard | x1 | |
| DB9 serial port (RS232) | x1 | |
| USB 2.0 | x1 | |
| Indicator Light | Blue indicator *1 (Blue light is always on when the machine is turned on, and off when the machine is turned off) R&G two-color lamp *1 (Low power red flickers, red is always on when charging, green is always on when full) | |
| Rugged Features | MIL-STD-810G: 1.22m drop Working temperature: -20 °C to 60 °C Storage temperature: -30 °C to 70 °C Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge Humidity: 95% Non-Condensing | |
| IP65 | Yes | |
| CE | Yes | |
| FCC | Yes | |
| Battery: UN38.3, MSDS, Air and Maritime Reporting, IEC62133 | Yes | |
| ECM 23 ATEX-B | Yes | |
| MIL-STD-810G | Yes | |
| QR Code Scanner | Optional: Honeywell N3680 Optical resolution: 5mil Scanning speed: 50 times /s Support code: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse | |
| NFC | Optional NXP300 NXP NFC 13.56MHz supports 14,443A/14,443B/15,693/18,092/mobile protocol under ISO/IEC. Card reading distance: 4cm | |
| Hand-strap | Standard | |
| 18W/PE fast charging adapter | Standard | |
| Docking Charger DC87R | Optional | |
| Vehicle Mount VHM87R | Optional | |
| Removable battery | Optional |
