Kiwi Box 2
|
$199.00 USD $219.00 USDSave $20 USD
Accessories
Configuration
8+128GB
Quote
Accurate positioning
Motion Recognition
Long-lasting battery life
Smart connection
Product Description
The RK3588S Mini PC is powered by Rockchip's latest flagship AIoT SoC, built with an 8nm process. The RK3588S chipset features a CPU based on big.LITTLE architecture. It includes four high-performance Cortex-A76 cores and four power-efficient Cortex-A55 cores, providing a good balance of performance and energy efficiency.
Packing list

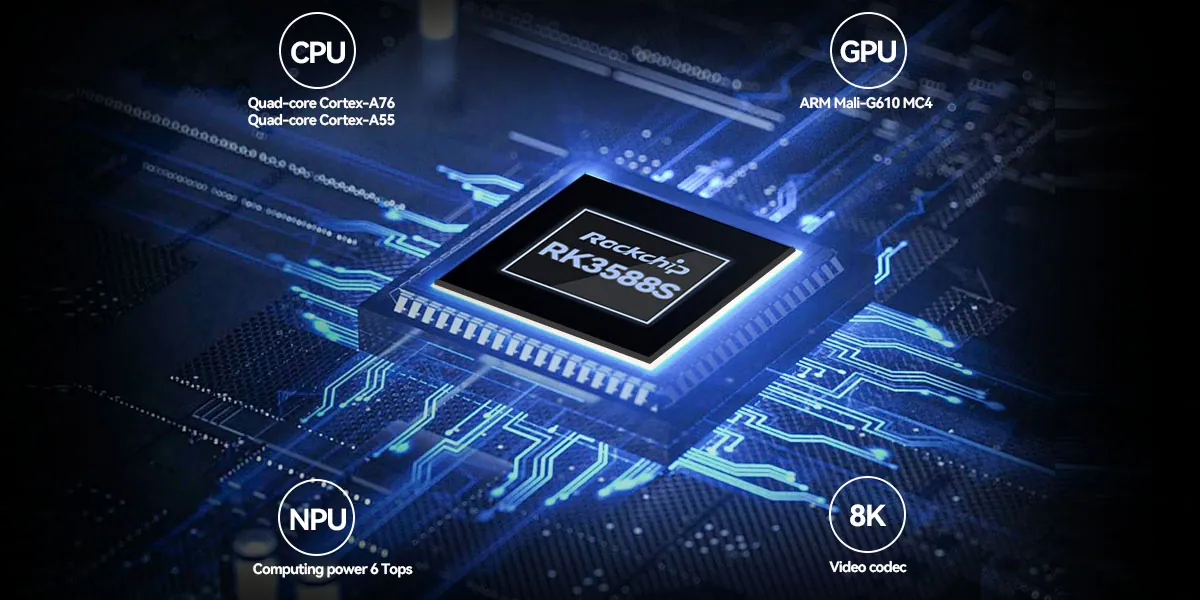

High Performance AIoT Processor RK3588S
The RK3588S Mini PC is powered by Rockchip's latest flagship AIoT SoC, built with an 8nm process. The RK3588S chipset features a CPU based on big.LITTLE architecture. It includes four high-performance Cortex-A76 cores and four power-efficient Cortex-A55 cores, providing a good balance of performance and energy efficiency.

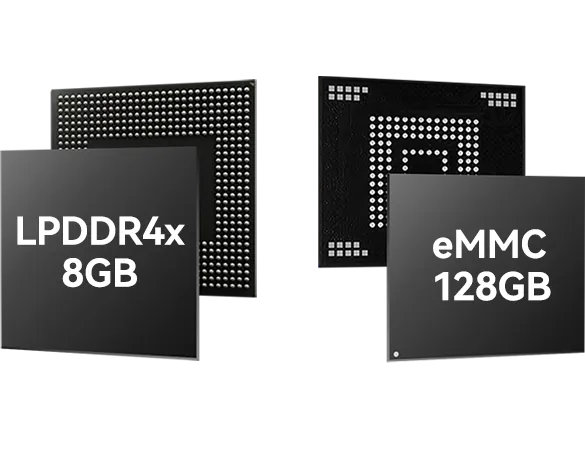

Large Memory Capacity
Supports up to 32GB of RAM LPDDR4 and 512GB of eMMC, providing fast memory access for better performance.
Powerful Computing Power NPU
Equipped with a powerful NPU that delivers 6 TOPS (Tera Operations Per Second) of AI computing power, the chipset's ability to perform AI-related tasks like image recognition and natural language processing is greatly enhanced.
8K Decoding & Encoding
The RK3588S SoC can support display resolutions up to 8K (7680×4320 pixels), delivering ultra high-definition video output. It also features HDR (High Dynamic Range) support for improved video quality. Decoding: x1 8K@60fps / x32 1080P@60fps channels (H.265/VP9) Encoding: x1 8K@30fps / x16 1080P@30fps channels (H.265/H.264)

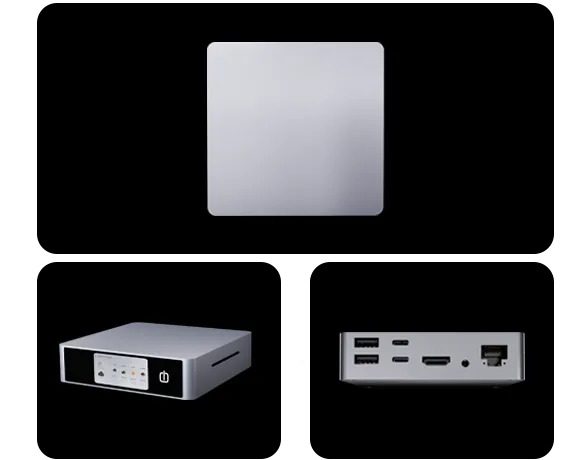

Integrated Aluminum Alloy CNC
The CNC machining and anodizing processes produce a sleek, consistent finish on the aluminum body, giving the mini PC a high-quality look and feel. Aluminum's good thermal conductivity helps dissipate heat, which can enhance performance and extend the device's lifespan.

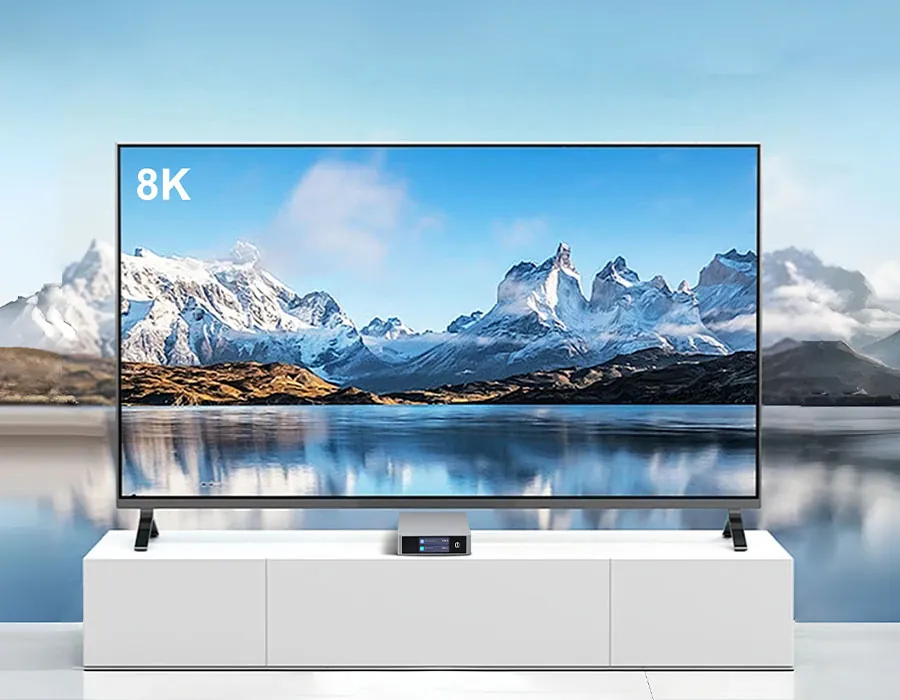

M2 RK3588S Linux ARM processor Mini PC with 8K display
8K Resolution: The capability to display content in ultra-high-definition 8K resolution (7680×4320 pixels), offering very detailed and crisp visuals.

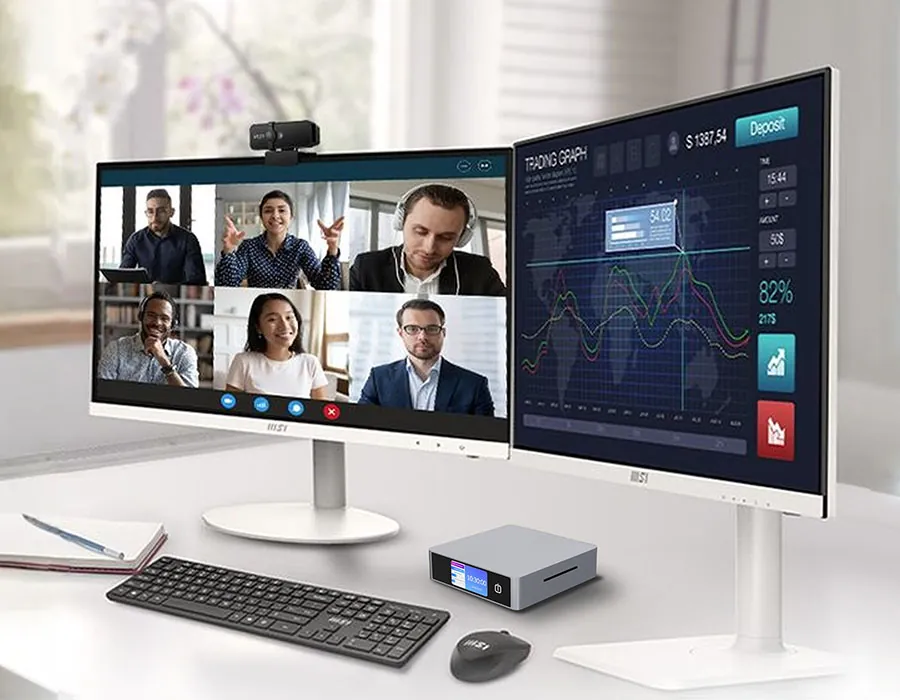

Dual Display Interface
Supports a range of display interfaces, including HD-MI 2.1 and DisplayPort 1.4, allowing connection to various display devices such as monitors, TVs, and projectors.
Strong and Versatile Connection
The RK3588S chipset provides a variety of connectivity options, including USB, USB-C, PCIe, HDMI, and Ethernet, making it easy to integrate into different devices. It also supports wireless standards like Wi-Fi and Bluetooth.
Extensive Technical Assistance
Accelerate your projects by leveraging comprehensive technical data sheets, such as SDK development tools, technical documentation, source code, API interfaces, and baseboard reference design. This feature simplifies the process of building custom solutions for efficient secondary development.
Basic parameters
| Basic parameters | CPU | Rockchip RK3588S, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration | |
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications | |
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time | |
| DDR | LPDDR4X 8GB (option: 4/16/32GB) 2133MHz, 64-bit | |
| eMMC5.1 | 128GB (option: 64/256/512GB) | |

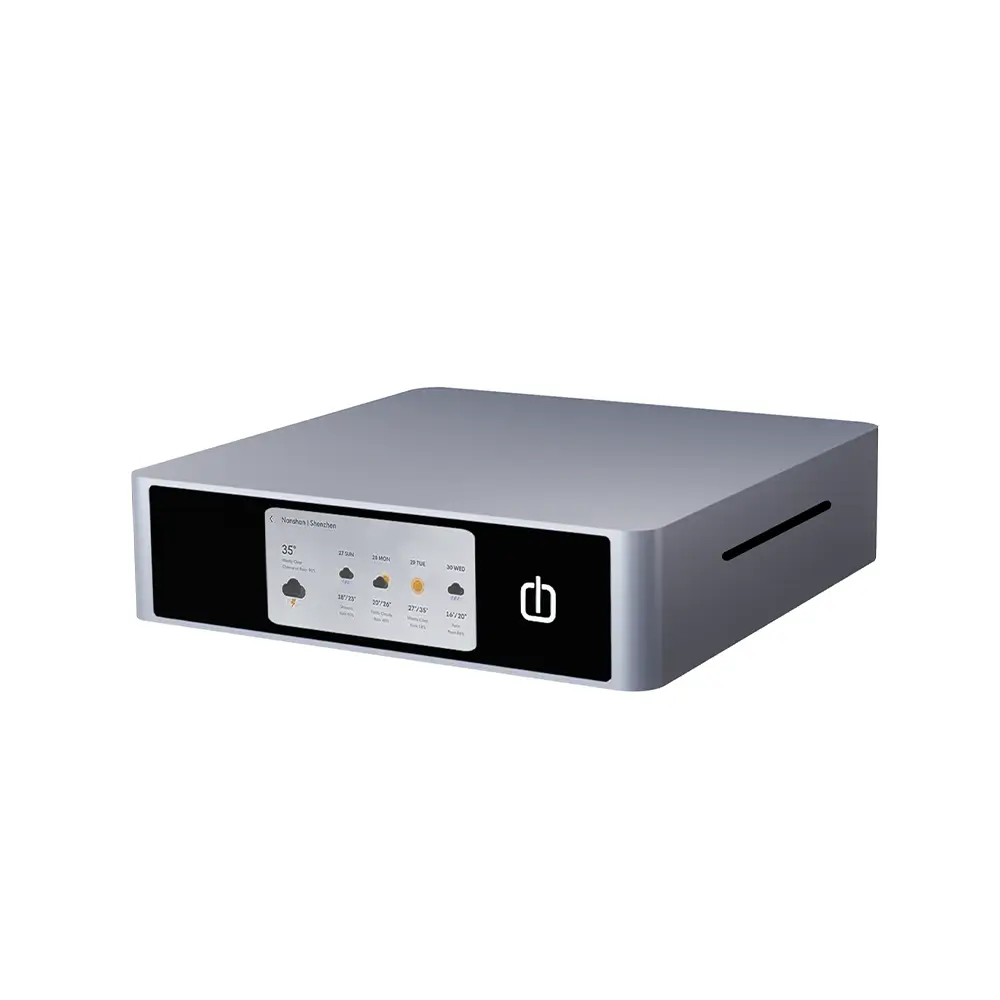

| Panel | 1.47-inch screen, resolution 320×172 | |
| USB Ports | 1×Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 1×USB3.0 Host 1×USB2.0 Host | |
| HDMI | HDMI2.1 (8K@60fps or 4K@120fps) | |
| Wireless | WiFi-6 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.0 BLE 2.4Ghz/5Ghz dual band channels, 1T1R | |
| Ethernet | 1000Mbps RJ45 | |
| Audio | 3.5mm headphone jack with stereo audio output and mic input 2× 8Ω/2W speakers inside | |
| RTC | 3V 3.4mAh, Lithium Rechargeable Battery | |
| Button | Capacitive touch power botton with red/green LEDs | |
| Power Supply | Type-C PD 12V/2A | |
| OS | Linux 5.10 (option:Linux6.10) Android12/Ubuntu22.04/Debian11 | |
| Dimensions | 95mm × 95mm × 26mm | |
| Weight | 300g | |
| Power Consumption | Idle: 0.84W (12V/60mA) Typical: 4.2W (12V/360mA) Max: 18W (12V/1500mA) | |

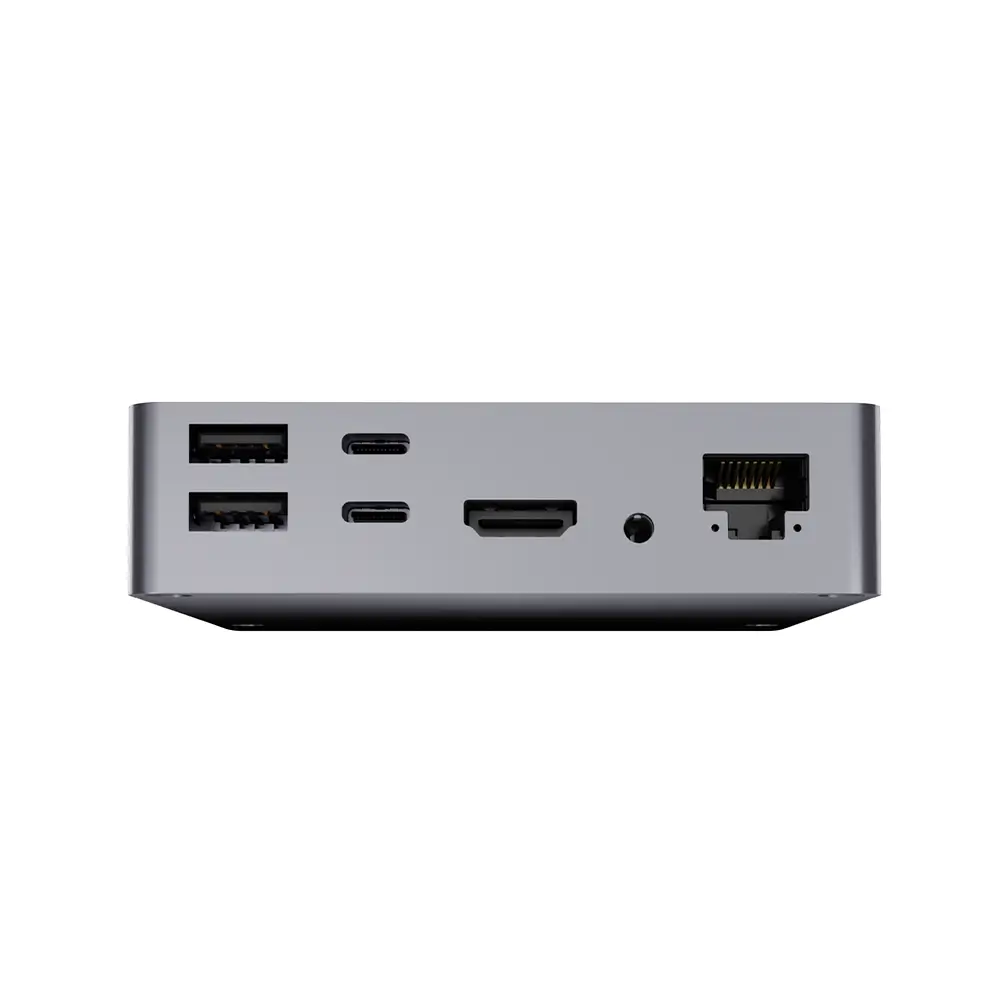

| External Interfaces | 1×Type-C 1×USB3.0 1×USB2.0 1×HDMI2.1 1×RJ45 1000Mbps Ethernet 1×3.5mm headphone jack | |
| Environmental Conditions | Operating Temperature: 0°C ~ 60°C Storage Temperature: -20°C ~ 70°C Humidity: 10% ~ 90% (non-condensing) |
