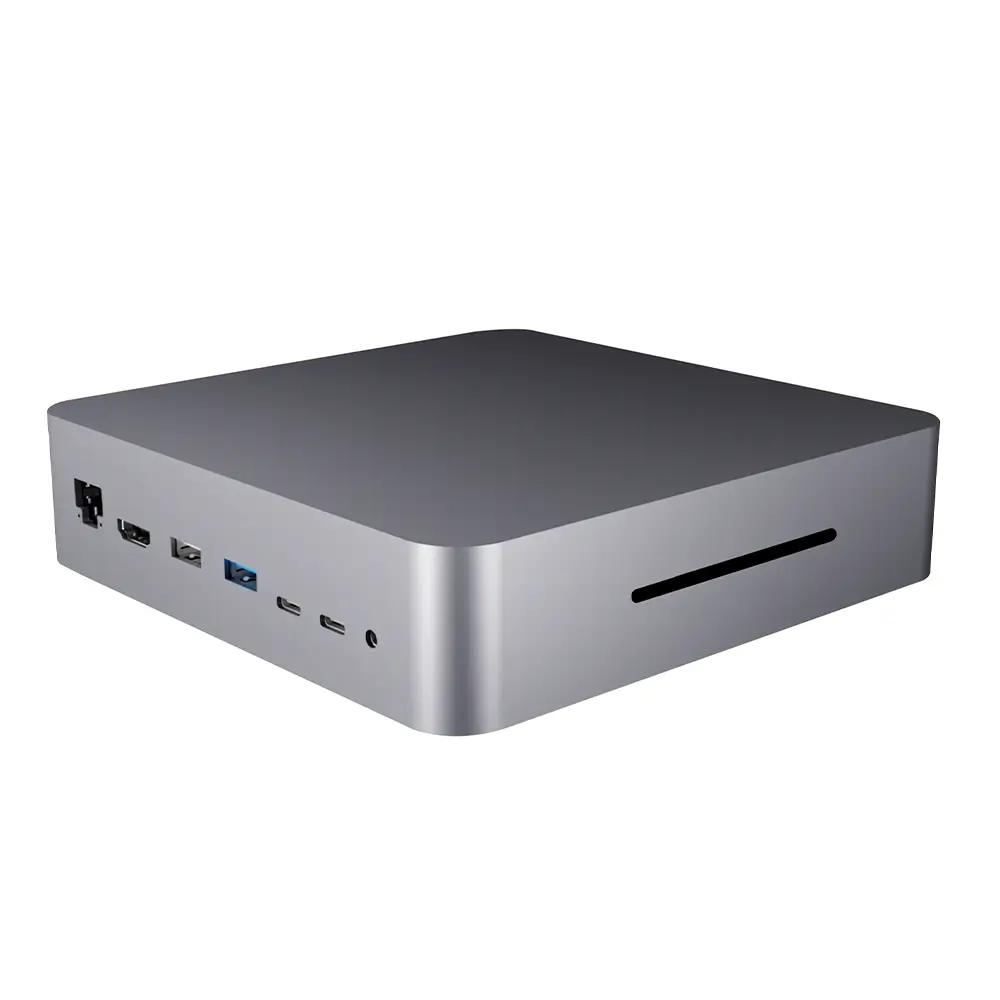

Kiwi Box 1
|
$229.00 USD $249.00 USDSave $20 USD
Accessories
Configuration
8+128GB
Quote
Accurate positioning
Motion Recognition
Long-lasting battery life
Smart connection
Product Description
The RK3588 Mini PC is driven by Rockchip's latest flagship AIoT SoC built on an 8nm process. Its chipset integrates a CPU with a big.LITTLE architecture, comprising four high-performance Cortex-A76 cores and four power-efficient Cortex-A55 cores, providing a good mix of performance and energy savings.
Packing list

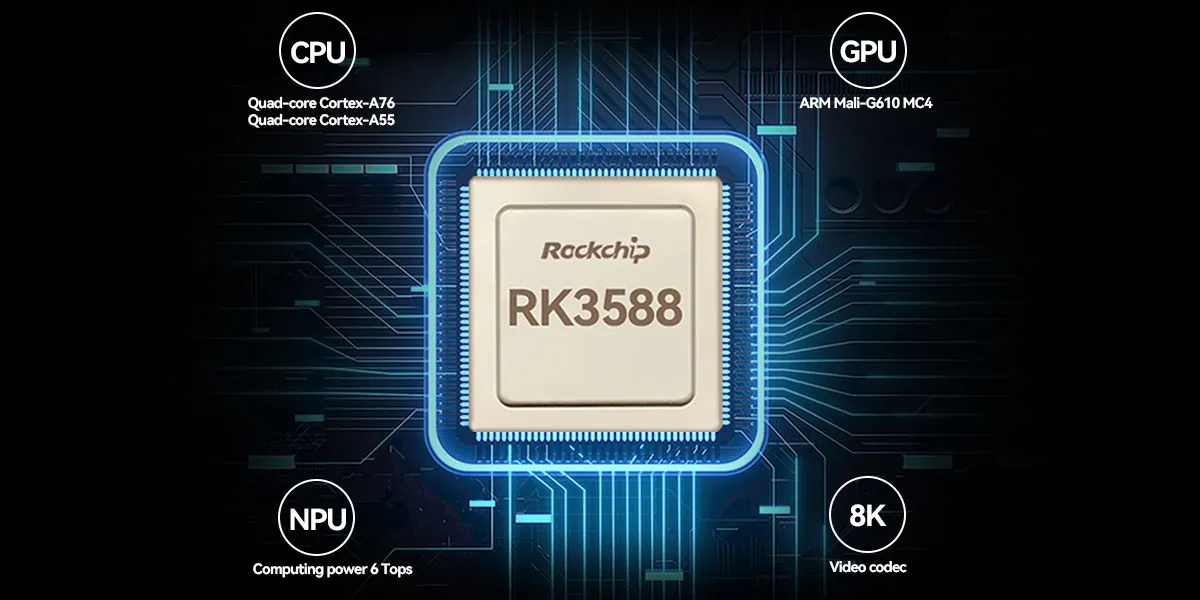

High Performance AIoT Processor RK3588
The RK3588 Mini PC is driven by Rockchip's latest flagship AIoT SoC built on an 8nm process. Its chipset integrates a CPU with a big.LITTLE architecture, comprising four high-performance Cortex-A76 cores and four power-efficient Cortex-A55 cores, providing a good mix of performance and energy savings.

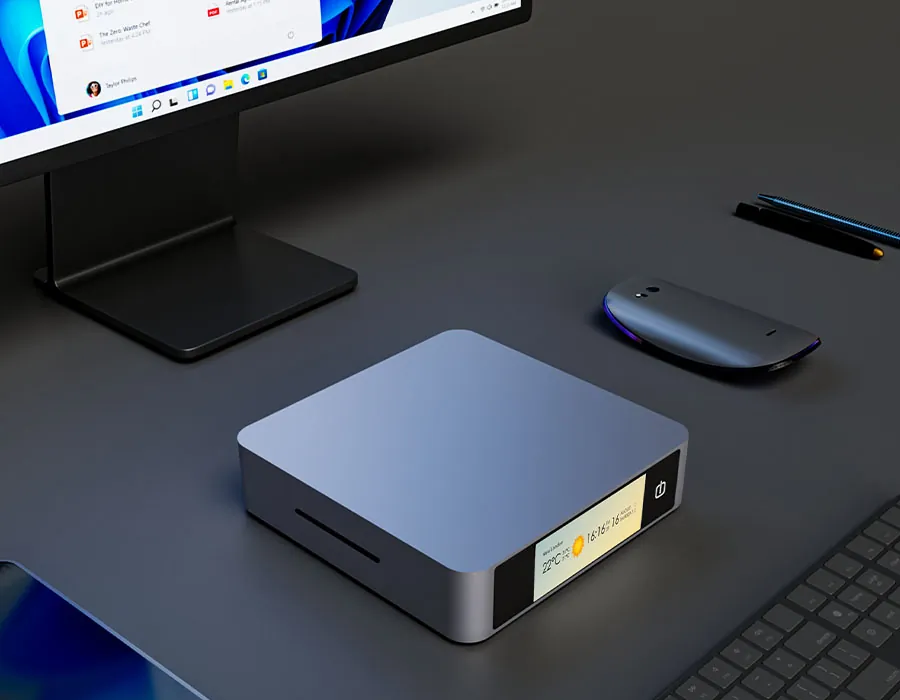

Powerful GPU Performance
The RK3588 features an ARM Mali-G610 MC4 quad-core GPU with a maximum frequency of 1GHz. It supports 3D gaming, multimedia editing, and various other graphics-heavy tasks.
Super AI Computing Power NPU
Featuring a robust NPU with 6 TOPS (Tera Operations Per Second), the chipset's NPU enhances its capability to perform AI tasks like image recognition and natural language processing.
8K Decoding & Encoding
The RK3588 SoC supports display resolutions up to 8K (7680×4320 pixels), enabling extremely high-definition video output. It also features HDR (High Dynamic Range) support for improved video quality. Decoding: x1 8K@60fps / x32 1080P@60fps channels (H.265/VP9) Encoding: x1 8K@30fps / x16 1080P@30fps channels (H.265/H.264)
Large Memory Capacity
The M1 ARM Mini PC supports up to 32GB of RAM and 512GB of eMMC. It also allows for the expansion of one M.2 PCIe3.0 NVMe SSD simultaneously. This makes it suitable for various applications requiring large RAM and storage capacity.

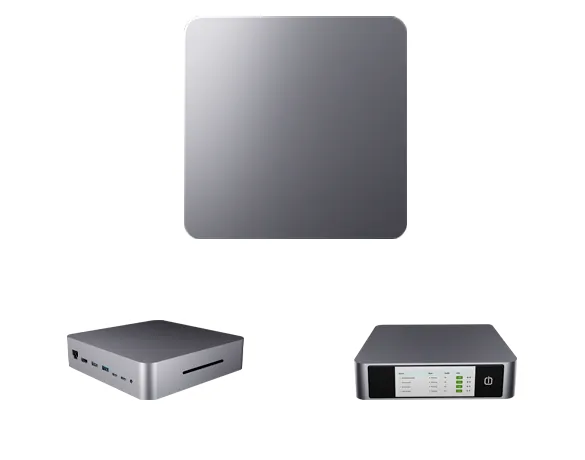

Integrated Aluminum Alloy CNC
The CNC machining and anodizing processes produce a sleek, uniform finish on the aluminum chassis, giving the embedded computer a premium look and feel. Aluminum has good thermal conductivity, helping to dissipate heat, which can enhance performance and extend the device's lifespan.

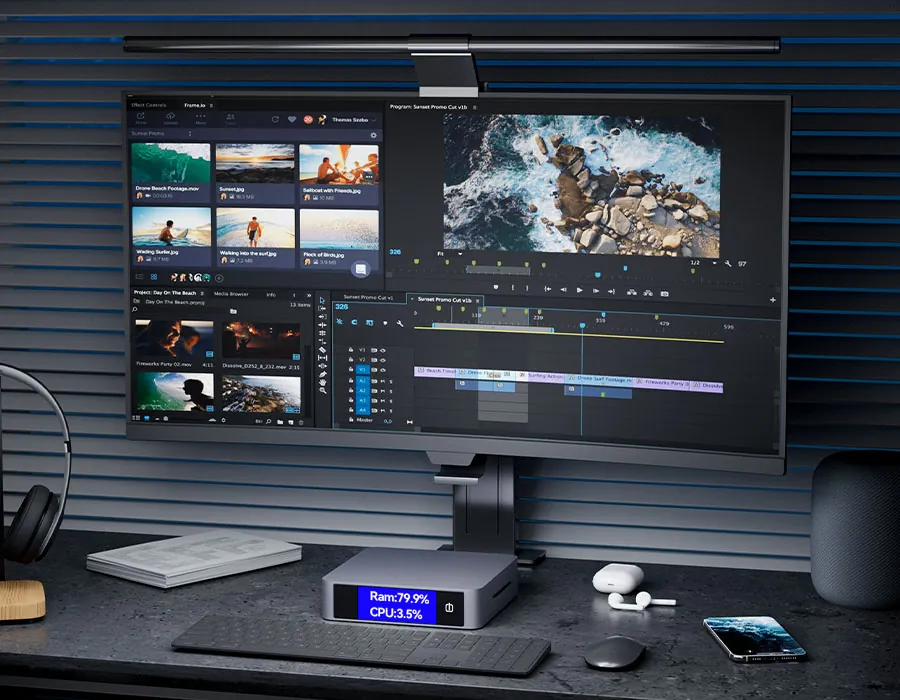

Compact Size but Powerful Performance
Designed to be easily portable and can be placed on a desk or mounted behind a monitor, with dimensions of 160x160x38mm and a weight of 1.81 pounds, it offers excellent computing power for multitasking and productivity applications.

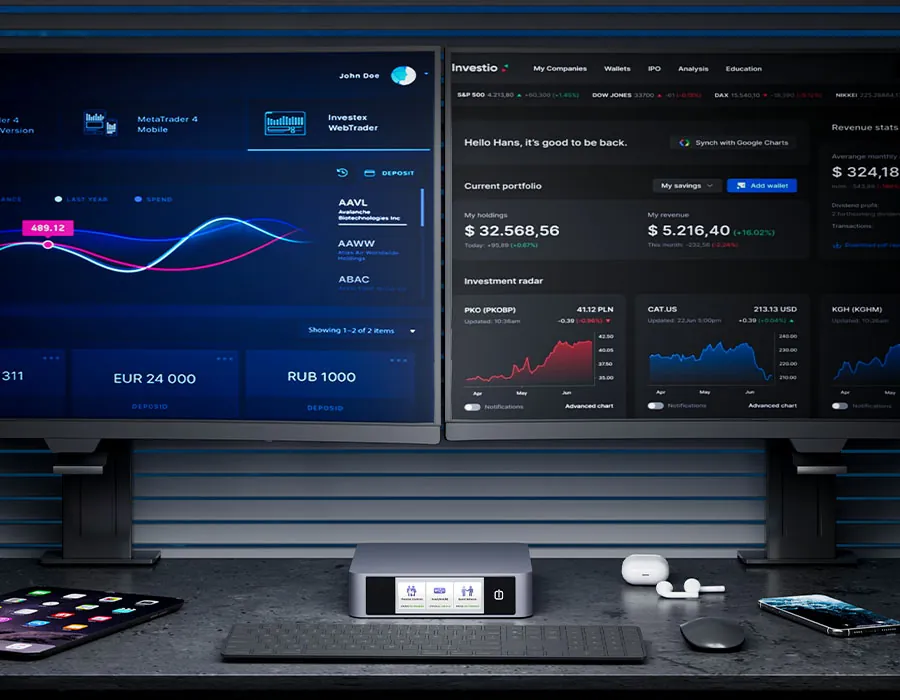

Dual Display Interface
Supports multiple display interfaces, including HD-MI 2.1 and DisplayPort 1.4, allowing connection to various display devices like monitors, TVs, and projectors.
Strong and Versatile Connection
The RK3588 chipset provides a variety of connectivity options, including USB, USB-C, PCIe, HD-MI, and Ethernet, making it easy to integrate into different devices. It also supports wireless standards like Wi-Fi and Bluetooth.
Basic parameters
| Basic parameters | CPU | Rockchip RK3588, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration | |
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications | |
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time | |
| DDR | 8GB LPDDR4X 2133MHz, 64-bit (option: 4/16/32GB) | |
| eMMC5.1 | 128GB (option: 64/256/512GB) | |
| Storage | PCIe3.0 M.2 slot inside, suport 2280 NVME SSD Mirco SD card slot inside, suport TF card storage expansion | |
| Panel | 3.16-inch capacitive touch screen, resolution 820×320 | |
| USB | 2× Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 1×USB3.0 Host 1×USB2.0 Host | |
| HDMI | HDMI2.1 (8K@60fps or 4K@120fps) | |
| Wireless | WiFi-6 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.0 BLE 2.4Ghz/5Ghz dual band channels, 1T1R (option: M.2 slot inside,suport 2230 PCIe wireless module) | |
| Ethernet | 1000Mbps RJ45 | |
| Audio | 3.5mm headphone jack with stereo audio output and mic input 2× 8Ω/2W speakers inside | |
| RTC | CR1220 Lithium Battery, 3V/38mAh | |
| Button | Capacitive touch power botton with red/green LEDs | |
| Power Supply | Type-C PD 12V/2A | |
| OS | Linux 5.10 (option:Linux6.10) Android12/Ubuntu22.04/Debian11 | |
| Dimensions | 160mm × 160mm × 38mm | |
| Weight | 820g | |
| Power Consumption | Idle: 1.35W (12V/110mA) Typical: 4.8W (12V/400mA) Max: 20W (12V/1700mA) | |
| External Interfaces | 2×Type-C 1×USB3.0 1×USB2.0 1×HDMI2.1 1×RJ45 1×3.5mm headphone jack | |
| Environmental Conditions | Operating Temperature: 0℃ ~ 60℃ Storage Temperature: -20℃ ~ 70℃ Humidity: 10% ~ 90% (non-condensing) |
