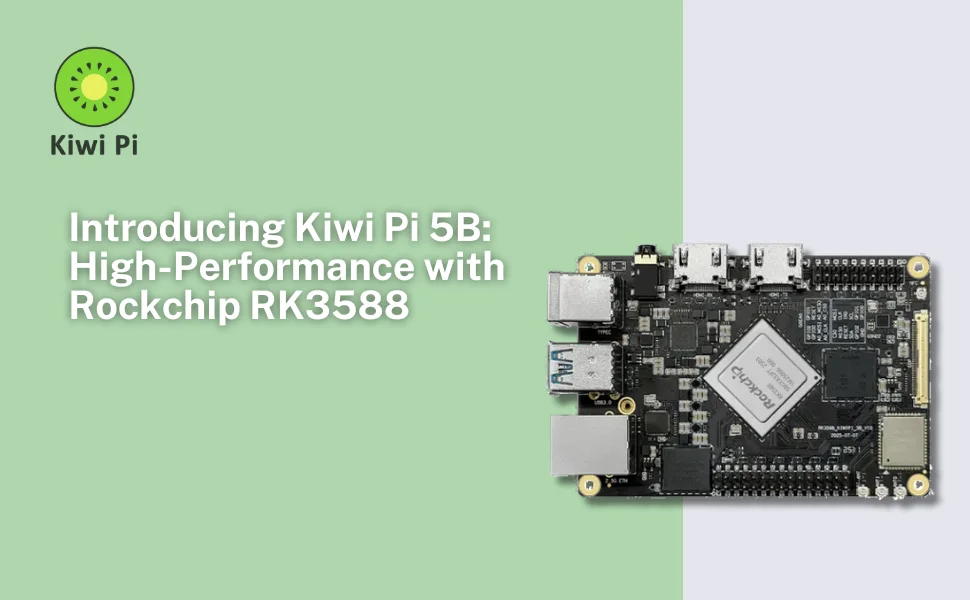

Introducing Kiwi Pi 5B
[Shenzhen, 2025.12.05] -- We are excited to announce the launch of our latest single-board computer, the Kiwi Pi 5B. Designed around the powerful Rockchip RK3588 SoC, the Kiwi Pi 5B sets a new standard for performance, connectivity, and versatility in a compact form factor, making it an ideal platform for developers, hobbyists, and industrial applications.
Kiwi Pi 5B Performance and AI Capabilities
At the heart of the Kiwi Pi 5B lies the advanced 8nm RK3588 processor, featuring a quad-core Cortex-A76 and quad-core Cortex-A55 CPU configuration, delivering exceptional processing power for demanding tasks. The board is equipped with an ARM Mali-G610 MC4 GPU for high-end graphics and supports modern APIs including OpenGL ES, Vulkan, and OpenCL.
| Category | Key Features & Specifications |
|---|---|
| SoC | Rockchip RK3588 (8nm) |
| CPU | Quad-core Cortex-A76 + Quad-core Cortex-A55 |
| GPU | ARM Mali-G610 MC4 (OpenGL ES, Vulkan 1.2, OpenCL 2.0) |
| NPU | Triple-core NPU (6 TOPS), supports int4/int8/int16/FP16/BF16/TF32 |
| Memory | 8GB LPDDR5 |
| Onboard Storage | 64GB eMMC 5.1 |
| Expandable Storage | TF Card Slot + M.2 2280 NVMe SSD (PCIe 3.0) |
| Video Decoding | 8K@60fps (H.265/H.264/AV1/AVS2) |
| Video Encoding | 8K@30fps (H.264/H.265) |
| Display Output | HDMI 2.1 (8K@60Hz), eDP 1.3 (4K@60Hz), MIPI-DSI (2K@60Hz), USB-C DP Alt (8K@30Hz) |
| Video Input | Dual MIPI-CSI (4-lane), HDMI 2.0 RX (4K@60Hz) |
| Wireless | Wi-Fi 6, Bluetooth 5.2, NFC (A/B/F/V) |
| Wired Networking | 2.5 Gigabit Ethernet |
| USB Ports | 2× USB 3.0 Host, 1× USB 2.0 Host, 1× USB-C 3.0 OTG with DP Alt |
| Audio | 3.5mm stereo + mic jack, onboard MEMS microphone |
| Expansion Header | 30-pin programmable I/O (UART, I2C, SPI, CAN, PWM, GPIO, 5V/3.3V) |
| Security | Dual CC EAL5+ certified eSE chips (Goodix GSEA0/GSN22) |
| Power | USB-C PD/QC support, default 12V/2.5A |
| OS Support | Android 16, Ubuntu 24.04, Debian 11, Linux 6.0, HarmonyOS, UOS, Kylin |
| Target Applications | AIoT, edge AI, digital signage, robotics, industrial automation, network appliances, multimedia, security systems, education, R&D |
Availability
The Kiwi Pi 5B is now available for order. For more information, detailed specifications, and purchasing options, please visit our website or contact our sales team.
