Kiwi Pi CM5
|
$169.00 USD $189.00 USDSave $20 USD
Accessories
Configuration
8+128GB
Quote
Accurate positioning
Motion Recognition
Long-lasting battery life
Smart connection
Product Description
The core board has advanced RK3588 octa-core 64-bit flagship processor. Crafted with 8nm technology, it integrates an ARM Mali-G610 MP4 quad-core GPU and a 6TOPs AI NPU. Its architecture ensures high performance and energy efficiency, making it suitable for intensive applications.
Packing list
High-Performance AI System-on-Module
SOM RK3588 is a powerful system on module powered by the Rockchip RK3588 chip, featuring a 6Tops NPU and a quad-core Mali-G610 MP4 GPU. It comes with a customized carrier board, offering expandable interfaces for diverse displays and industry applications. Compatible with various operating systems, this module suitable for a range of embedded applications.
Next-Gen Octa-Core Processor
SOM core board boasts the RK3588 octa-core 64-bit processor, an integrated ARM Mali-G610 MP4 quad-core GPU, and a built-in 6TOPs AI NPU. Explore new performance for diverse AI scenarios.
High-Performance RK3588 CPU
The core board has advanced RK3588 octa-core 64-bit flagship processor. Crafted with 8nm technology, it integrates an ARM Mali-G610 MP4 quad-core GPU and a 6TOPs AI NPU. Its architecture ensures high performance and energy efficiency, making it suitable for intensive applications.
8K Video Performance
Unlock the potential of 8K video output and 4K video input, facilitating up to four-screen displays. Perfect for immersive, high-definition, multi-screen interactive scenarios.

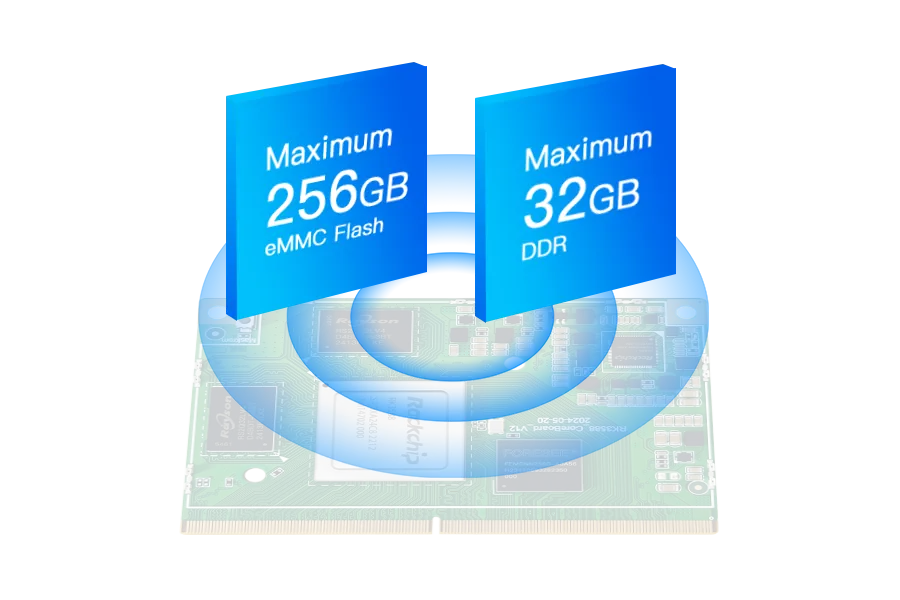

Large Capacity of RAM and eMMC
It can be equipped with up to 32GB of ultra-large operating memory, which exceeds the previous memory capacity limit and has a faster response speed, and can meet the application needs of products with high memory requirements and large storage capacity.
Rich Expansion Interface
Utilizes a standard SODIMM interface with 314 pins, supports a variety of expansion interfaces including HD-MI, MIPI-DSI, DP, MIPI-CSI, PCIe3.0, PCIe2.0/SATA3, SDIO, GMAC, USB3.0, USB2.0, I2C, I2S, UART, GPIO, and more for versatile industry applications.
Industrial-grade for Harsh Environments
The industrial-grade processors and components adhere to strict standards, ensuring reliability, safety, and stability in harsh environments. They operate 24/7 in temperatures from -40°C to 85°C, making them ideal for demanding industrial applications.

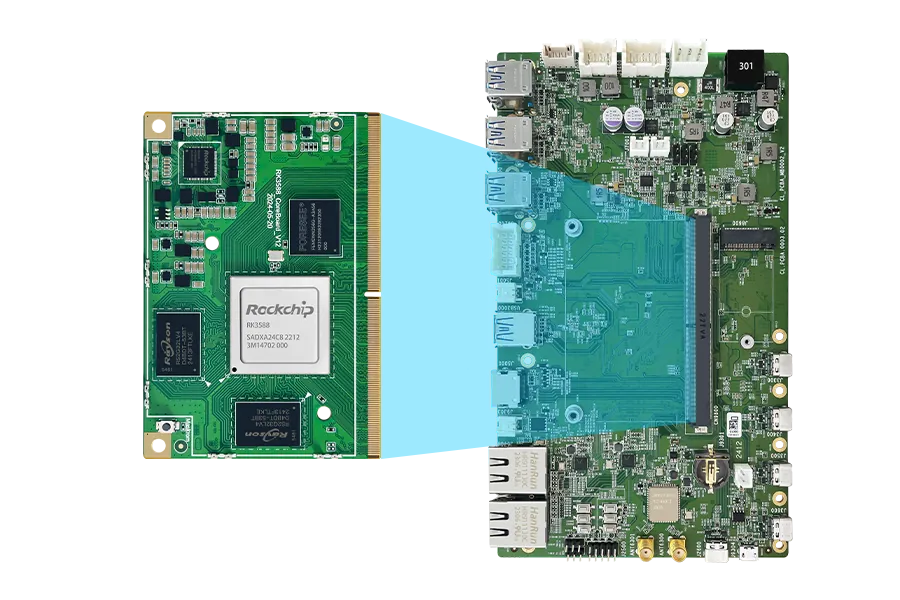

High-performance ITX Industry Motherboard
The core board uses the standard MXM3.0-314P interface and is compact in size. When combined with the baseboard, it can form a complete high-performance ITX industry motherboard with richer expansion interfaces, which can be directly applied to various smart products to accelerate product implementation.
Basic parameters
| Basic parameters | CPU | Rockchip RK3588, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration | |
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications | |
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time | |
| DDR | LPDDR4X 8GB (option: 4/16/32GB) 2133MHz, 64-bit | |
| eMMC5.1 | 128GB (option: 64/256/512GB) | |
| Expand IO | 314Pin MXM Connector Supports: 2*Type-C OTG, 2*USB2.0 Host 2*HDMI/eDP TX, 1*HDMI RX 2*MIPI-DSI 4Lane, 1*MIPI-CSI 4Lane 3*PCIe2.0/SATA3.0, 1*PCIe3.0x4 2*SDMMC, 2*Gmac Most I/O can be programmed as GPIO/I2C/UART/SPI, etc | |
| Power Supply | DC 4V/5A | |
| OS | Linux 5.10 (option:Linux6.10) Android12/Ubuntu22.04/Debian11 | |
| Dimensions | 82mm × 55mm | |
| Environmental Conditions | Operating Temperature: 0°C ~ 60°C Storage Temperature: -20°C ~ 70°C Humidity: 10% ~ 90% (non-condensing) |
