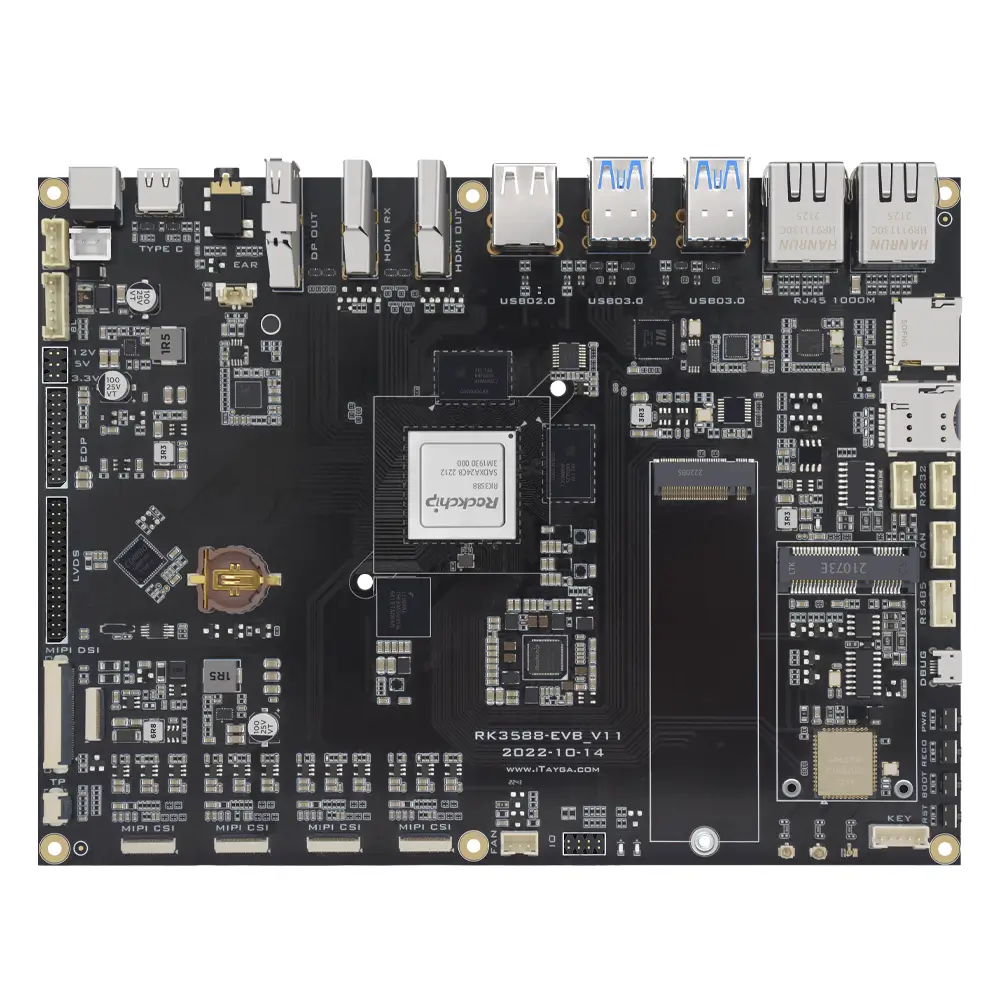

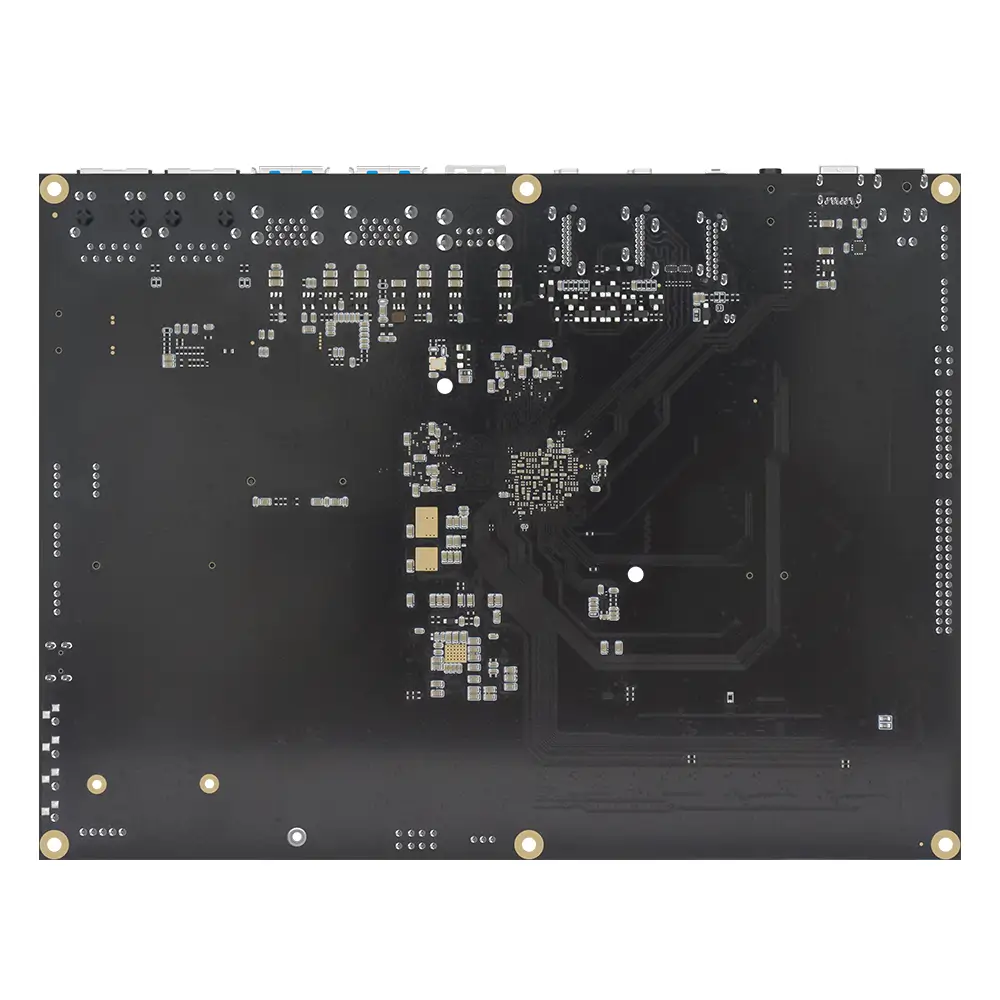

Kiwi Pi 5 Ultra

|

$239.00 USD $289.00 USDSave $50 USD

Accessories
Configuration
8+64GB
Quote
Accurate positioning
Motion Recognition
Long-lasting battery life
Smart connection
Product Description

Kiwi Pi 5 Ultra is powered by Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.2GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor.

Packing list

  • Rockchip RK3588 (8nm LP Process)

    Kiwi Pi-P2 is powered by Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.2GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor.

    Rockchip RK3588 (8nm LP Process)
  • 6 TOPS Powerful Computing Power

    Equipped with a powerful NPU delivering 6TOPS of computing power, it supports INT4/INT8/INT16 mixed operation and framework switching of TensorFlow / MXNet / PyTorch / Caffe. Its exceptional compatibility is able to meet the edge computing needs of terminal devices.

    6 TOPS Powerful Computing Power
  • Super-Large 32GB RAM

    With a maximum configuration of 32GB, this device exceeds the previous RAM limit, delivering faster response times. It is able to meet the product requirements for large RAM and high storage capacity.

    Super-Large 32GB RAM
  • 8K Video Encoding And Decoding

    Supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264encoding. It also supports encoding and decoding simultaneously, enabling up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding. These deliver a stunning 8K HD display and delicate picture quality.

    8K Video Encoding And Decoding
  • Dual Gigabit Ethernet Ports

    Kiwi Pi-P2 comes equipped with multiple high-speed Ethernet ports, including two Gigabit Ethernet.Enabling faster network data transfer, seamless multimedia streaming, and enhanced real-time communication. It also supports WiFi 6 (IEEE802.11 a/b/g/n/ac/ax up to 600.4Mbps),BT5.4, 2.4Ghz and 5Ghz band channels, 2T2R

    Dual Gigabit Ethernet Ports
  • Industrial-Grade Product Standards, No Fear Of Harsh Working Environments

    Through rigorous testing and production, we ensure the reliability, safety and stability of the product in harsh environments. With built-in temperaturecontrol strategy, it can run stably and uninterruptedly 24 hours a day, 7 days a week, whether it is extremely cold -20°C or high temperature 85°C, meeting the needs of industrial applications and suitable for various harsh working environments.

    Industrial-Grade Product Standards, No Fear Of Harsh Working Environments
  • Rich peripheral interfaces

    It boasts an extensive array of peripheral interfaces on its base board, including Four USB 3.0 ports, Two USB 2.0 interface, dual Gigabit Ethernet interfaces, CAN interfaces, and an integrated WiFi/Bluetooth module. Furthermore, it incorporates a Micro SD card slot and an M.2 NVMe SSD-compatible PCIe slot etc.

    Rich peripheral interfaces
Basic parameters
Basic parametersCPU

Rockchip RK3588, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz

GPU

ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2 High performance 2D image acceleration

NPU

Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications

VPU

Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264

DDR

LPDDR4X 8GB (option: 4/16/32GB) 2133MHz, 64-bit

Storage

eMMC 64GB (Option:128GB/256GB/512GB) MicroSD (TF) Card Slot

USB

1*Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 4*USB 3.0 Host 2*USB 2.0 Host

Serial Ports

2xRS-232 1xRS-485

Video Output

HDMl2.1(Maximum resolution 8K@60fps) Type-C DP1.4(maximum resolution 8K@30fps) Display Port DP 1.4 Mipi-DSl 4-Lane(maximum resolution 2560*1600@60fps)

Video Iutput

4* MIP|-CS| 4Lane HDMI RX 2.0

HDMI

1*HDMI TX 2.1, 1*HDMI RX 2.0

Wireless

WiFi 6 (IEEE802.11 a/b/g/n/ac/ax up to 600.4Mbps) BT5.4 2.4Ghz and 5Ghz band channels, 2T2R

Ethernet

2x1000Mbps RJ45

Audio

3.5mm headphone jack with stereo audio output and mic input On board mic input

Power Supply

DC in 12V/2A

Supported OS

Linux 5.10 (option:Linux6.10) Android12, Debian11, Ubuntu22.04
