Kiwi Pi 3 Ultra
Rockchip RK3568 Quad-Core A55,ARM Mali G52 2EE,1 TOPs NPU
Rockchip RK3568(22nm Lp process)
Kiwi Pi 3Ultra uses a general-purpose SOC positioned in the mid-to-high end, with a 22nm process technology, integrated with a 4-core ARM architecture A55 processor and a Mali G52 2EE graphics processor
Built-in independent NPU
Built-in independent NPU, can be used for lightweight artificial intelligence applications，Supports one-click switching of mainstream architecture models such as Caffe/TensorFlow and supports various types of peripheral interfaces such as SATA/PCIE/USB3.0
Super-Large 32GB RAM
With 32GB of LPDDR4 RAM and 512GB of eMMC onboard capacity, the device ensures smooth multitasking, ample application and data storage, making data more secure and reliable, and meeting the requirements of large-memory product application scenarios
Supports 4K H.264/H.265 and other formats of high-definition decoding
Supports 4K H.264/H.265 and other formats of high-definition decoding, supports simultaneous decoding of multiple video sources, supports up to 10*1080P30 H264/H265, supports simultaneous encoding and decoding; supports 1080@120fps H.264 and H.265 format encoding, supports CBR, VBR, FixQp, AVBR, and QpMap, and supports ROI encoding
Multiple display interfaces, enabling three-screen display
It integrates a quad-core Arm architecture A55 processor and a Mali-G52 2EE graphics processor, supports 4K decoding and 1080P encoding, and has multiple display interfaces such as LVDS, eDP, HDMI, and MIPI. HDMI supports up to ultra-high-definition 4K display and supports three-screen display
Powerful network communication capabilities
Kiwi Pi 3Ultra supports Wi-Fi 6, featuring dual-band capabilities at 2.4GHz and 5GHz with compliance to IEEE 802.11 a/b/g/n/ac/ax standards. It also includes Bluetooth 5.4 with BLE support, ensuring fast and reliable connectivity

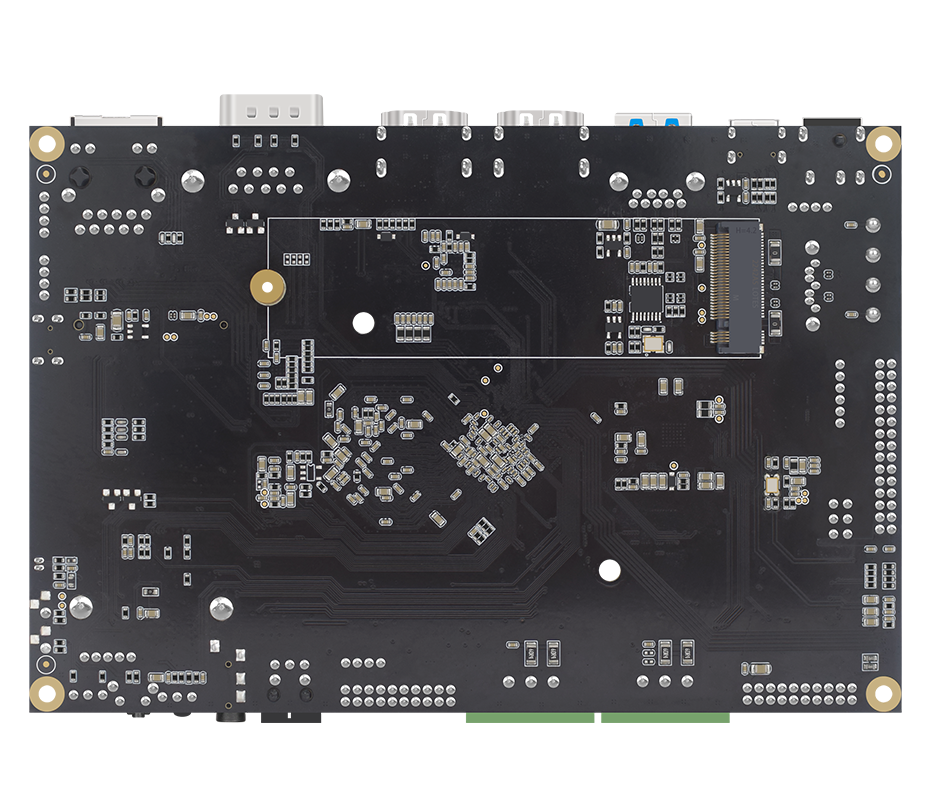

Product Display
The board has rich interfaces such as MIPI_DSI, EDP PANEL, LVDS PANEL, Gigabit Ethernet, OTG, HDMI IN/OUT, Debug port, USB2.0/3.0, IR infrared, UART, FAN, etc., which can meet the application needs of more scenarios.
Support Multiple Operating Systems
Linux 5.10 (option:Linux6.10), Android12, Debian11, Ubuntu22.04
Mainly for industry customization market
Kiwi Pi 3Ultra is mainly aimed at the customized markets such as IoT gateways, NVR storage, industrial control tablets industrial detection, industrial control boxes, karaoke, cloud terminals, and vehicle-mounted central control
-
Car Music
-
Control Systems
-
Industrial Gauge
-
Edge Computing
Basic parameters
| Specifications | CPU | Rockchip RK3568, 22nm process Quad-core ARM 64-bit 4*Cortex-A55@2.0GHz |
| GPU | ARM Mali G52 2EE OpenGL ES 1.1/2.0/3.2 OpenCL 2.0 Vulkan 1.1 High performance 2D image acceleration |
|
| NPU | 1 TOPS |
|
| VPU | Video Decoding: 4K@60fps：H.264/H.265/VP9 1080P@30fps：H.264/H.265 Video Encoding: 1080P@120fps：H.264/H.265 1080P@60fps：H.264/H.265 |
|
| DDR | LPDDR4X 4GB (option: 2/8GB) 1600MHz, 32-bit |
|
| Storage | eMMC 32GB (Option:64GB/128GB/256GB) Supports PCIe 3.0 x2 M.2 2280 SSD expansion interface Supports SATA 3.0 hard drive expansion interface |
|
| USB | 1* Type-C USB2.0 OTG 1* USB3.0 HOST 1* USB2.0 HOST |
|
| Video Output | HDMI 2.0 output Dual LVDS outputs (with backlight interface support) eDP 4-Lane output (with backlight interface support) MIPI-DSI 4-Lane output (with I2C TP support) |
|
| Video Iutput | HDMI 2.0 input |
|
| Audio | 3.5mm three-segment headphone jack Onboard MIC jack Speaker jack SPDIF jack |
|
| Wireless | WiFi 6 (IEEE 802.11 a/b/g/n/ac/ax, maximum speed 600Mbps) BT 5.4 2.4G / 5G dual-band, single antenna |
|
| Mobile | Supports MINI-PCIE interface modules Quectel EC20 series 4G modules Quectel RG200U series 5G modules Micro SIM card interface |
|
| Ethernet | 1*1000Mbps RJ45 |
|
| Expansion Interfaces | 1×UART TTL 2×RS232 1×RS485 1×CAN 20Pin I/O expansion header |
|
| Other Functions | Real-time clock, supporting rechargeable coin cell battery backup Infrared remote control receiver 6-axis gyroscope sensor USB-to-serial debugging interface Cooling fan interface Red-green dual-color indicator light |
|
| Buttons | Power button Flashing button Reset button Supports cable expansion interface |
|
| Power | DC5.5-2.0 input interface, 12V/2A |
