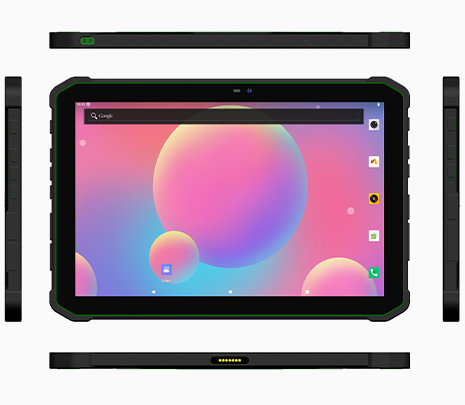

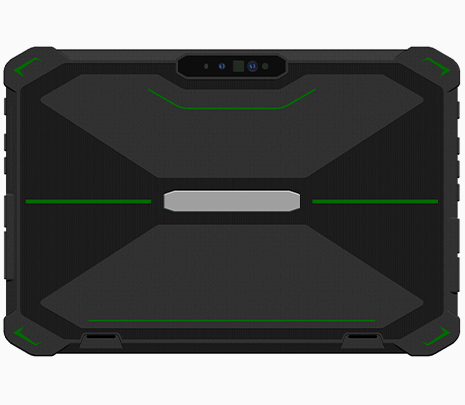

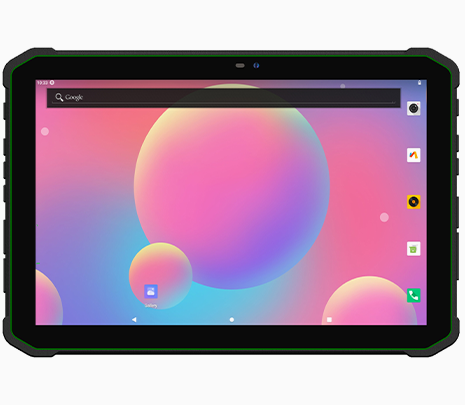

10.1-inch Rugged Tablet
The 10.1-inch Rugged Tablet is a tough Android device designed to endure severe conditions.
1565656
Basic parameters
| Audio | Speaker | Built-in 8Ω/1W *2 dual speakers |
| Microphone | Single MIC*2 |
|
| Sensors | Sensors | G-sensor, Geomagnetic sensor (compass), Gyro Sensor, light sensor |
| Wireless | Wi-Fi | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI |
| Bluetooth | Bluetooth BT5.1 (BLE) class1 Transmission distance: 10m |
|
| 4G | GSM: B2/3/5/8 WCDMA:B1/2/5/8 FDD:B1/2/3/4/5/7/8/17/20/28A/28B TDD:B38/39/40/41 |
|
| GPS | Support: GPS/GLONASS/BEIDOU/Galileo/QZSS/SBAS Cold start time:<60 seconds |
|
| System | CPU | MT8781 octa-core, 2*Cortex-A76 2.2 GHz + 6*Cortex-A55 2.0GHz |
| GPU | ARM G57 MC2 |
|
| RAM | 8GB LPDDR4 (upgrade options up to 32GB) |
|
| Storage | 128GB eMMc (upgrade options up to 512GB) |
|
| Display & Touch Screen | Display | Type: TFT Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 700cd/㎡ |
| Touch Pannel | 10 points capacitive screen, G+G, hardness 7H |
|
| Operating System | Android | Android 15 |
| I/O Interface | I/O Interface | Type C *2（OTG）, Type C *1 (Data & Charing) SIM card *1 TF card *1，Max: 512GB 7PIN Pogo Pin *1 |
| Camera | Front | 5MP |
| Rear | 13MP |
|
| Certifications | IP65 | Yes |
| CE | Yes |
|
| FCC | Yes |
|
| Power Consumption | Battery | Removable Lithium-ion polymer battery, 10000mAh/3.8V, lasts for 9 hours (at 50% volume, connected to WiFi, with 200 lumens brightness, and default 1080P HD video display). |
| RTC battery | Built-in rechargeable 3V/1mAh lithium-ion battery. |
|
| Adapter | USB Type-C interface, supports fast charging PE+2.0, maximum power of 18W, maximum 9V/2A, European standard, CE approval |
|
| Construction | Type | 10.1-inch Rugged Tablet |
| Material | ABS+PC |
|
| Dimension | 255*173*11.7mm |
|
| Weight | 950g |
|
| Color | Black |
|
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Customizable *3 (Barcode Scanning) Reset Key*1 |
|
| Indicator | Indicator lights * 2, R/G dual-color lights. 1. During charging, they will be constantly red. 2. When fully charged, they will display a constant green light. 3. When the battery is low, the red light will flash. |
|
| Rugged Features | MIL-STD-810H: 1.22m drop Working temperature: -20 °C to 60 °C Storage temperature: -30 °C to 70 °C Humidity: 95% Non-Condensing |
|
| Data Collection | 2D | Optional: Zebra SE4710 Optical resolution:5mil Scanning speed:50 times/sec Support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse |
| NFC | Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, reading distance: 0-4cm |
|
| Accessories | Hand-strap (Standard) | 1 |
| 18W/PE fast charging adapter (Standard) | 1 |
