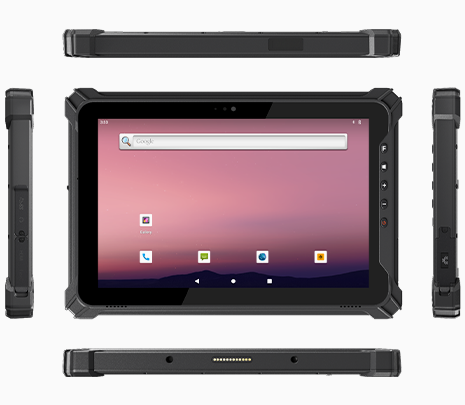

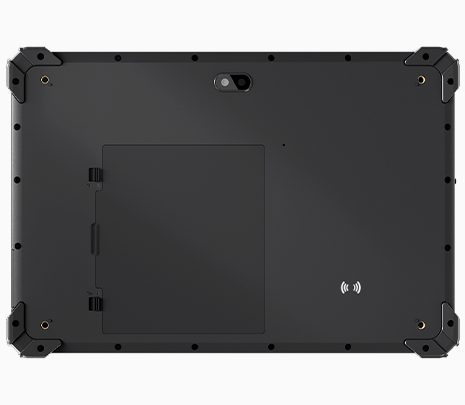

10.1-inch Rugged Tablet Pro
10.1-inch Rugged Tablet Pro is an upgraded version of the Rugged Tablet 10.1, featuring a versatile "one out of three" interface module.
Octa-core Processor RK3588S CPU with 6Tops AI Computing Power
The 10.1-inch Rugged Tablet Pro is powered by the RK3588S processor, which features an octa-core CPU configuration that delivers high performance for demanding industrial applications.

Anti-fall
The industrial Linux 10.1-inch Rugged Tablet Pro features a compact 10.1-inch screen housed in a tough PC+ABS material casing. This material is known for its durability and resistance to impact, making the tablet rugged and suitable for use in industrial settings. Its anti-fall design ensures that accidental drops or impacts won't damage the device.

Waterproof
Designed to withstand the elements, this tablet is IP68 waterproof, allowing it to be used in wet or rainy conditions without the risk of damage.

Level 6 Dust-proof, Impermeable to Dust
The rugged tablet has good sealing performance and is suitable for outdoor operations when exposed to wind. Even in bad weather such as sandstorms and rainstorms, the device can still operate normally.

Temperature Resistance
PC+ABS exhibits good heat resistance, allowing it to maintain its mechanical properties over a wide temperature range. This makes it suitable for use in both hot and cold environments without compromising performance.

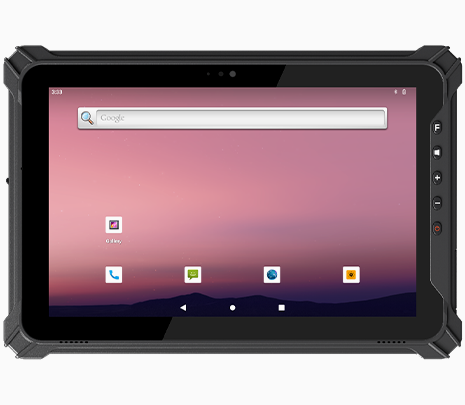

10.1 inch IPS Capacitive Screen
10.1" FHD+ screen, the screen material is IPS. 14.4:9 aspect ratio, 1920 x 1200 resolution makes every detail lifelike, bring you the ultimate visual feast.

8GB RAM and 128GB ROM and TF card Expandable
With 8GB of RAM and 128GB of internal storage (ROM) and expandable memory support up to 1TB with Micro SD card, it provides ample memory and storage space for running multiple applications and storing data.

Long-lasting Battery
With a large 10000mAh battery capacity, this tablet ensures long hours of uninterrupted usage, perfect for extended work shifts or field operations where access to power sources may be limited.

5MP / 13MP Dual Camera
The 10.1-inch Tablet PC has a 13MP rear camera and a 5MP front-facing camera, enabling users to capture high-quality images and videos for documentation or communication.

Expandability
With options to integrate additional features such as a barcode scanner, fingerprint reader, or NFC reader, enhancing its functionality for specific industrial tasks.

Color Option
Available in a variety of attractive colors for options with Classic Black, Forest Green, Bright Orange, etc.

Comprehensive Interfaces
The 10.1-inch Tablet PC features various interfaces to support a wide range of peripherals and accessories, including a USB-C port for fast charging and data transfer, a MicroSD card slot, speakers, cameras, Wi-Fi, and optional 4G.

Android 14 / GMS
The 10.1-inch rugged Tablet PC is compatible with Android 14 and Google Mobile Services (GMS).
Versatile Applications
The RK3588S rugged tablet supports a wide range of applications across various categories, including automotive diagnosis, vehicle-mounted systems, industrial control, mapping and measurement, outdoor use, medical applications, maintenance machinery and equipment, smart meters, field exploration, education, logistics, warehouse forklifts, school buses, airport ground handling management, fire safety supervision, security, power energy, water services, engineering equipment for water companies, road assistance services, sports, agricultural machinery, petrochemicals, smart homes, inspections and testing, ambulances, water services, search and rescue, navigation and ship management, and other industries.
-
Automotive Diagnosis
-
Mapping / Measurement
-
Energy And Utilities
-
Logistics Application
Basic parameters
Audio | Speaker | Built-in 8Ω/1W *2 dual speakers |
Mic | Single MIC |
|
Sensor | Sensors | G-sensor, Geomagnetic sensor (compass), Gyro Sensor, light sensor |
Wireless | Wi-Fi | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI |
Bluetooth | Bluetooth BT5.1 (BLE) class1 Transmission distance: 10m |
|
4G | GSM: B2/3/5/8 WCDMA:B1/2/5/8 FDD:B1/2/3/4/5/7/8/17/20/28A/28B TDD:B38/39/40/41 |
|
GPS | Supports GPS/GLONASS/BEIDOU/Galileo/QZSS/SBAS Cold start time:<60 seconds |
|
System | CPU | MT8781 octa-core, 2*Cortex-A76 2.2 GHz + 6*Cortex-A55 2.0GHz |
GPU | ARM G57 MC2 |
|
RAM | 8GB LPDDR4 (upgrade options up to 32GB) |
|
Storage | 128GB Emmc (upgrade options up to 512GB) |
|
Display & Touch Screen | Display | Type: TFT Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 700cd/㎡ |
Touch Pannel | 10 points capacitive screen, G+G, hardness 7H |
|
Operating System | Android | Android 14 / GMS |
I/O Interface | I/O Interface | Standard USB 2.0 *1, Type C *1 (Data & Charing) ∮3.5mm Standard earjack *1 SIM card *2 TF card *1,Max: 512GB 12PIN Pogo Pin *1 |
Camera | Front | 5MP |
Rear | 13MP |
|
Power Consumption | Battery | Removable Lithium-ion polymer battery 10000mAh/3.8V 9 hours ( 50% volume sounds, connect to WiFi, 200 lumens brightness, 1080P HD video display by default ) |
RTC battery | Built-in rechargeable 3V/1mAh lithium-ion battery. |
|
Adapter | USB Type-C interface, supports fast charging PE+2.0, maximum power of 18W, maximum 9V/2A, European standard, CE approval |
|
Construction | Type | 10.1-inch Rugged Tablet |
Material | ABS+PC |
|
Dimension | 274.9*188.7*23.1mm |
|
Weight | 1140g |
|
Color | Black |
|
Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Customizable *1 (Barcode Scanning) Home Key*1 |
|
Indicator | Indicator lights * 2, R/G dual-color lights. 1. During charging, they will be constantly red. 2. When fully charged, they will display a constant green light. 3. When the battery is low, the red light will flash |
|
RJ45 network port (10/100M adaptive) Standard | x1 |
|
DB9 serial port (RS232) | x1 |
|
USB 2.0 | x1 |
|
Ambient | Rugged Features | MIL-STD-810H: 1.22m drop Working temperature: -20 °C to 60 °C Storage temperature: -30 °C to 70 °C Humidity: 95% Non-Condensing |
Certifications | IP65 | Yes |
CE | Yes |
|
CCC | Yes |
|
MIL-STD-810H | Yes |
|
FCC | Yes |
|
Data Collection | 2D | Optional: Zebra SE4710 Optical resolution:5mil Scanning speed:50 times/sec Support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse |
NFC | Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, reading distance: 0-4cm |
|
Accessories | Hand-strap | Standard |
18W/PE fast charging adapter | Standard |
|
Docking Charger DC87R | Optional |
|
Vehicle Mount VHM87R | Optional |
|
Removable battery | Optional |
