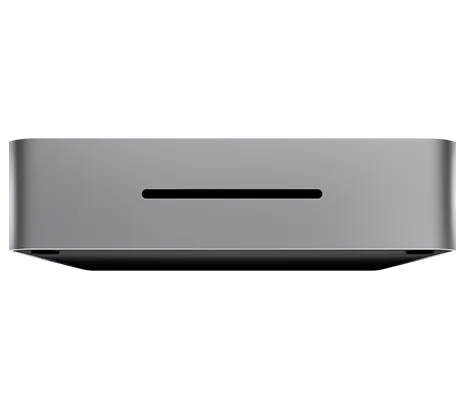

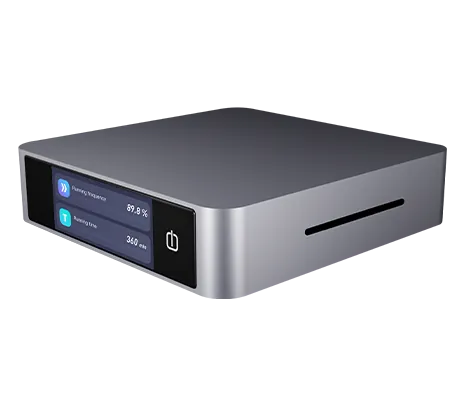

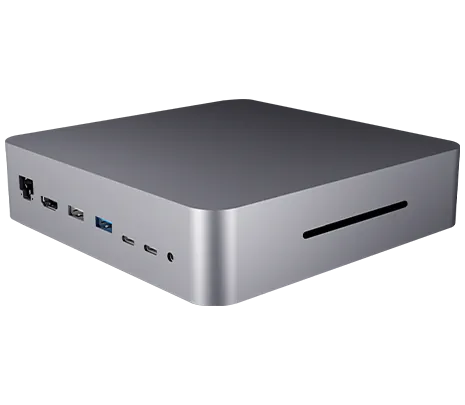

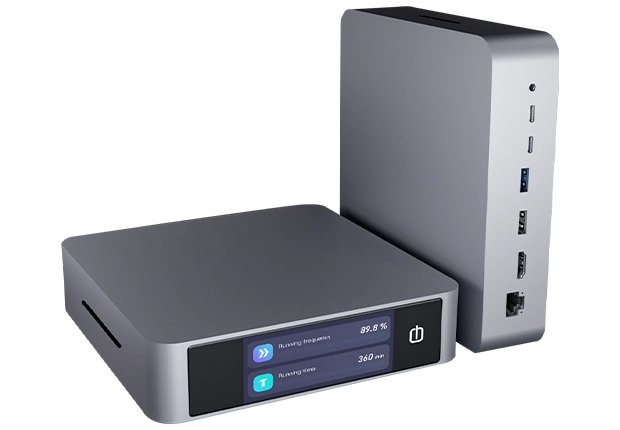

Kiwi Box 1
AI Box/Smart Box
• Equipped with processor RK3588
• Private deployment of AI large models
• Supports 32GB large memory
• 8K video encoding and decoding
• Compatible with multiple operating systems
• Full aluminum alloy shell for heat dissipation
• Rich expansion interfaces
• Comprehensive development materials
Kiwi Box 1
RK3588 Chipset
Features the Rockchip RK3588 processor, an 8-core 64-bit chip with four Cortex-A76 cores at 2.2GHz, four Cortex-A55 cores at 1.8GHz, and an independent NEON coprocessor.
AI Performance
Includes a triple-core NPU that delivers 6 TOPS of performance and accelerates various data types, including int4, int8, int16, FP16, BF16, and TF32.
8K Resolution
Supports 2K, 4K, and 8K resolutions for enhanced viewing quality.

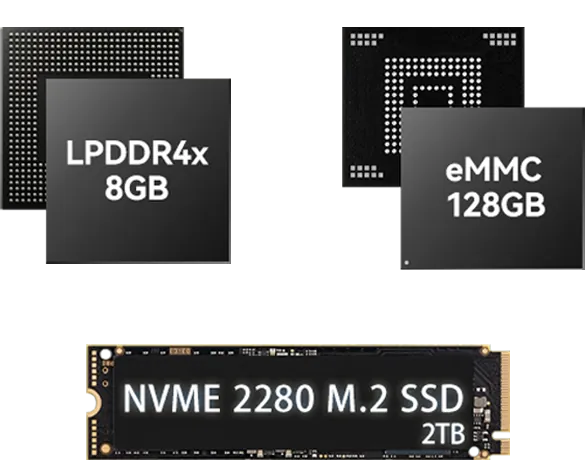

8GB RAM & 128 GB eMMC
Includes 8GB RAM and 128GB eMMC, with available options of 4/16/32 GB RAM and 64/256/512 GB eMMC.

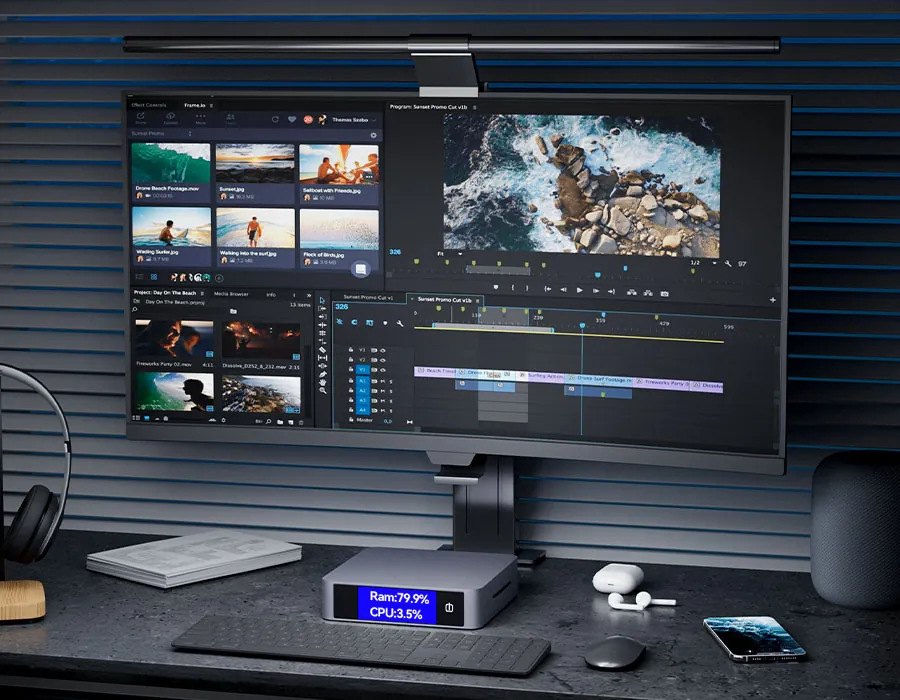

Multimedia Performance
Super Ultra HD Multimedia Decoding
Technical Support
Available Documentation and Developer Resources
Application Scenarios
Suitable for a wide range of AI and edge computing applications, including robotics, private deployment of large language models (LLMs), edge AI computing, smart city infrastructure, smart home systems, and intelligent drone platforms.
Robots
Private Deployment of Large Models
Edge Computing
Smart City
Smart Home
Drone

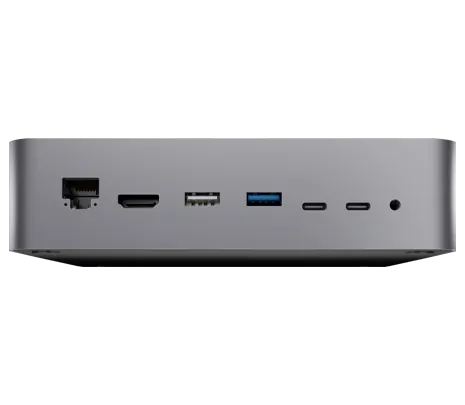

Interfaces
Specifications
| Kiwi Box 1 | ||
|---|---|---|
| Basic Specifications | CPU | Rockchip RK3588, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration |
|
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications |
|
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time |
|
| DDR | 8GB (option: 4/16/32GB) | |
| Storage | 128GB (option: 64/256/512GB) | |
| Expand Storage | PCIe3.0 M.2 slot inside, support 2280 NVME SSD Mirco SD card slot inside, support TF card storage expansion |
|
| Panel | 3.16-inch capacitive touch screen, resolution 820×320 | |
| USB | 2× Type-C (Full function:USB3.1-OTG,DP ALT,PD) 1×USB3.0 Host 1×USB2.0 Host |
|
| HDMI | HDMI2.1 (8K@60fps or 4K@120fps) | |
| Wireless | WiFi-6 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.0 BLE 2.4Ghz/5Ghz dual band channels, 1T1R (option: M.2 slot inside,suport 2230 PCIe wireless module) |
|
| Ethernet | 1000Mbps RJ45 | |
| Audio | 3.5mm headphone jack with stereo audio output and mic input 2× 8Ω/2W speakers inside |
|
| RTC | CR1220 Lithium Battery, 3V/38mAh | |
| Button | Capacitive touch power botton with red/green LEDs | |
| Power Supply | Type-C PD 12V/2A | |
| OS | Linux 5.10 (option:Linux6.10) Android15/Ubuntu24.04/Debian12 |
|
| Dimensions | 160mm × 160mm × 38mm | |
| Power Consumption | Idle: 1.35W (12V/110mA) Typical: 4.8W (12V/400mA) Max: 20W (12V/1700mA) |
|
| External Interfaces | 2×Type-C 1×USB3.0 1×USB2.0 1×HDMI2.1 1×RJ45 1×3.5mm headphone jack |
|
| Environmental Conditions | Operating Temperature: 0℃ ~ 60℃ Storage Temperature: -20℃ ~ 70℃ Humidity: 10% ~ 90% (non-condensing) |
|
Customization
The Kiwi Pi team, bringing over 18 years of expertise in product design, research and development, and manufacturing, offers services including hardware, software, complete machine customization, and ODM/OEM.
