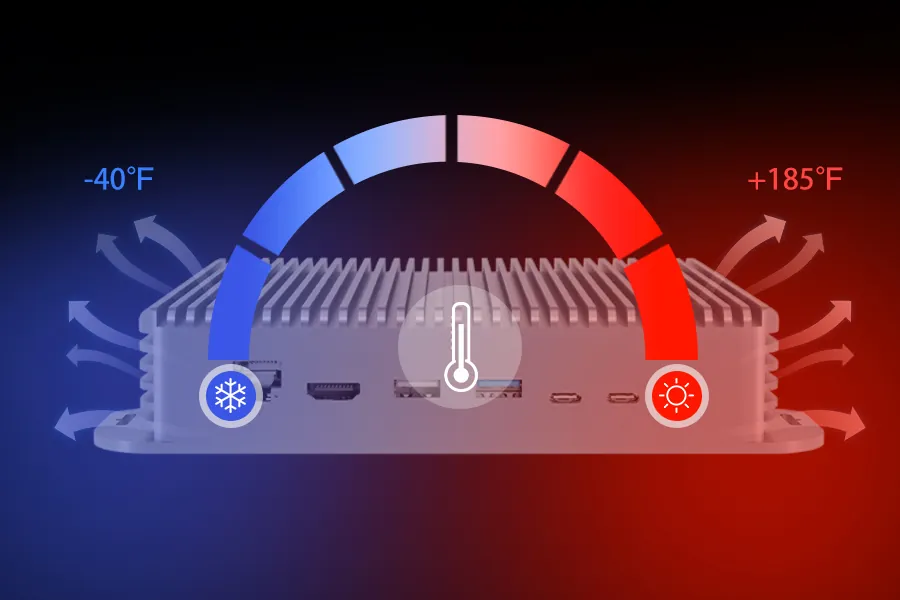

Fanless design, durable aluminum alloy construction, and an operating temperature range of -40°F to 185°F ensure reliable operation in tough conditions.

Based on Rockchip's 8nm process flagship chip RK3588 (quad-core Cortex-A76 plus quad-core Cortex-A55), with a main frequency of up to 2.2GHz. It comes with Android 12 or Linux operating systems and supports TF, USB, and SATA3.0 storage expansion.

The industrial computer features a 6 Tops computing power NPU processor with a three-core architecture, supporting int4/int8/int16/FP16/BF16/TF32 mixed computing. It is compatible with various AI development tools and interfaces, making it suitable for a range of edge computing applications.

The RK3588 SoC can support display resolutions up to 8K (7680×4320 pixels), delivering extremely high-definition video output. It also features HDR (High Dynamic Range) support for improved video quality. Decoding: x1 8K@60fps / x32 1080P@60fps channels (H.265/VP9) Encoding: x1 8K@30fps / x16 1080P@30fps channels (H.265/H.264)

Supports up to 32GB of RAM and 512GB of eMMC, with the ability to expand one M.2 PCIe3.0 NVMe SSD simultaneously. It meets the high RAM and large storage requirements of various applications.

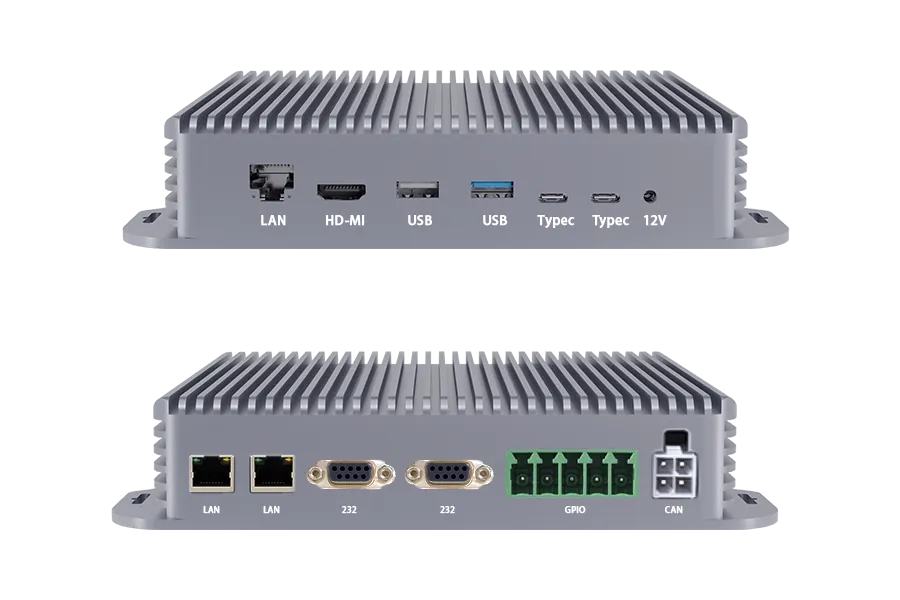

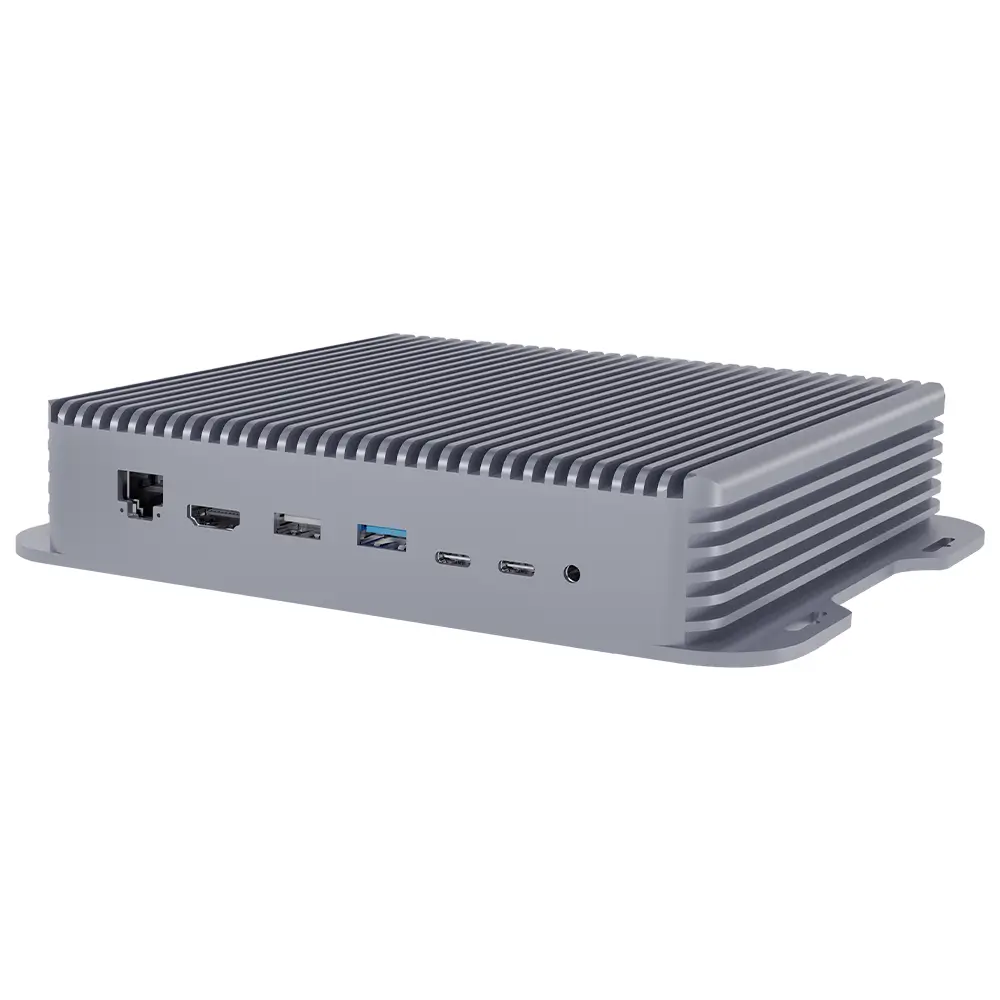

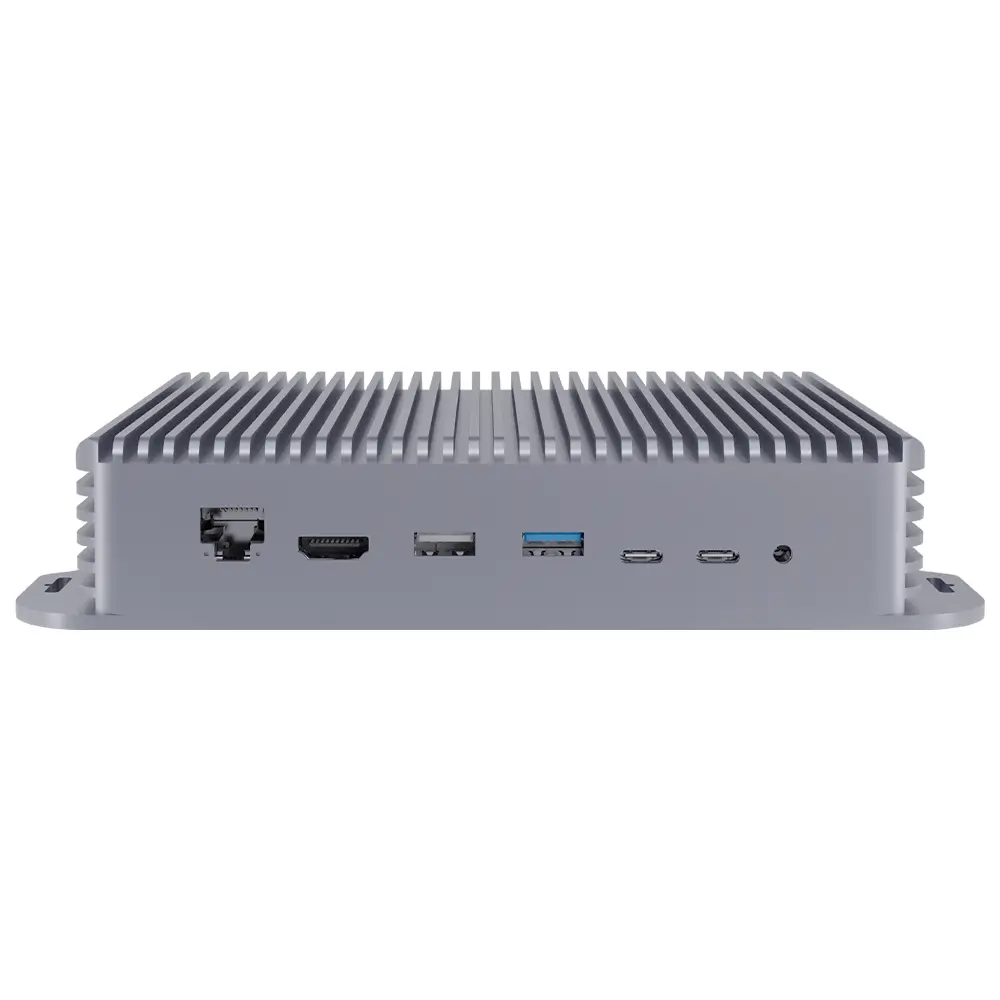

Equipped with multiple USB interfaces (USB-C supporting USB3.0 OTG, USB-A USB3.0 Host), standard DB9 female RS232 interfaces, and options for RS485, GPIO, and CAN ports. This significantly enhances environmental adaptability in industrial settings with high interface demands and centralized control.

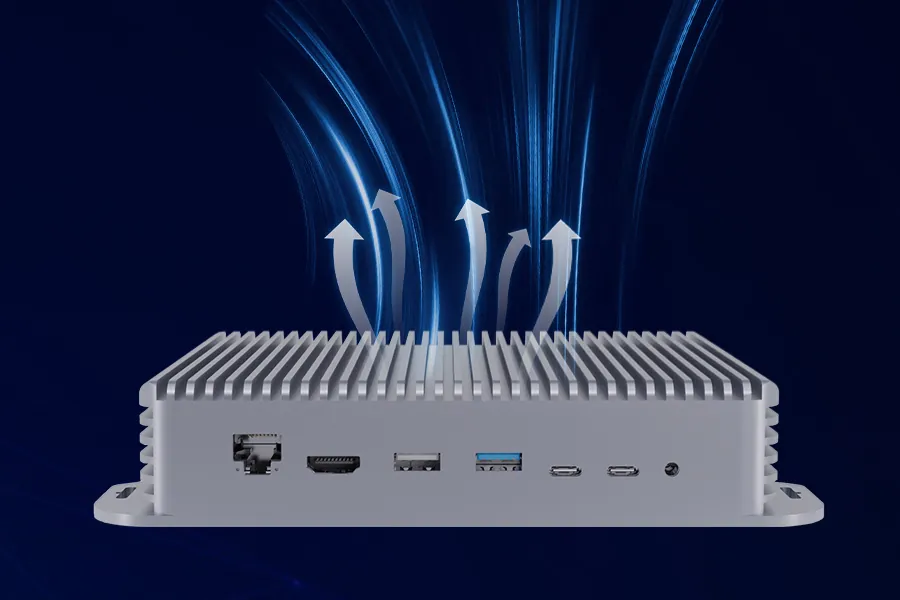

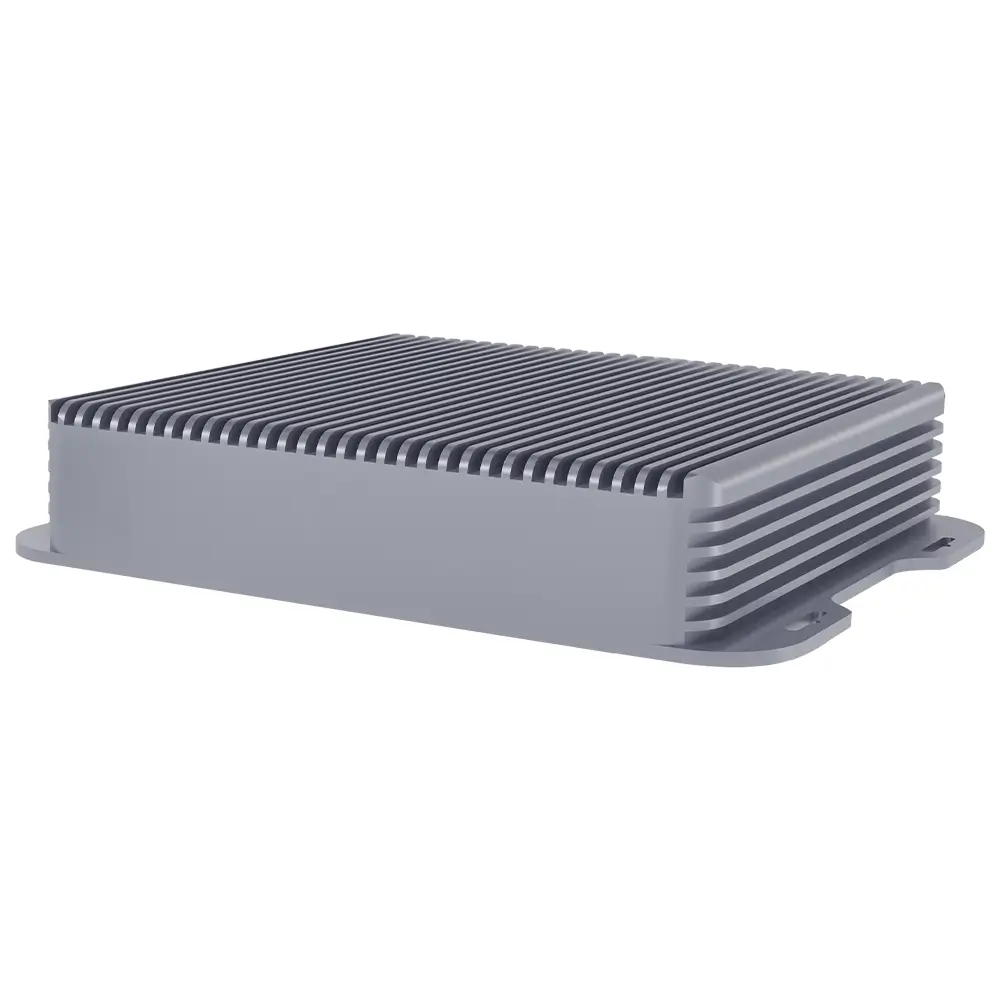

The enclosure features oxidized, sandblasted matte black finish, offering a slim and elegant appearance with a robust industrial aesthetic. It uses a fanless design, utilizing a high thermal conductivity aluminum profile shell that efficiently dissipates internal heat and safeguards internal components without noise. The shell is durable, resistant to deformation and corrosion, and suitable for various environments.

Wired network: supports 10/100/1000M adaptive Ethernet Wireless network: built-in Wi-Fi 6 and Bluetooth 5.0 Mobile network: supports PCI-E interface for 4G/5G Internet access.

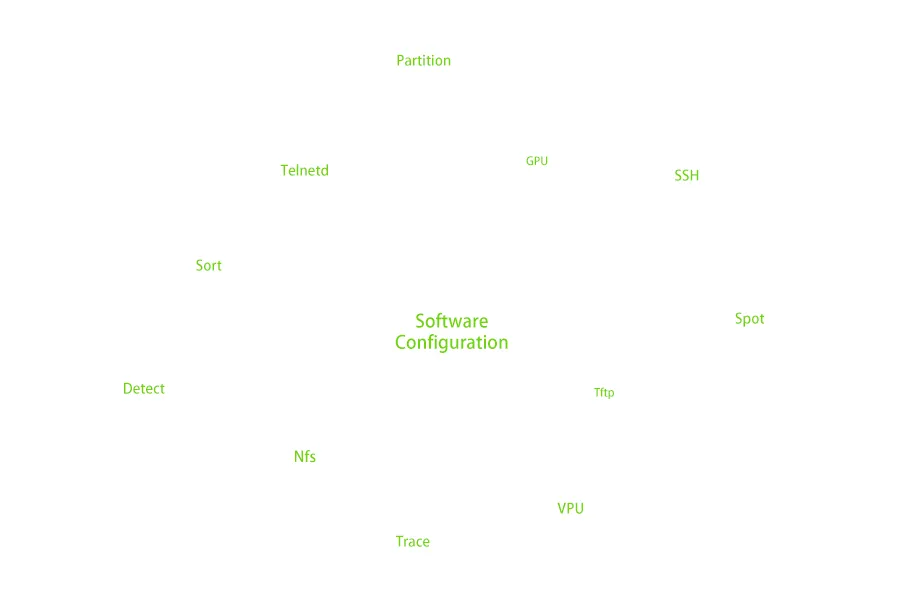

System services: support SSH, telnetd, NFS, TFTP, etc. Development components: Media processing: GPU, VPU (video encoding and decoding, image zooming, etc.) Intelligent analysis processing: NPU (supports INT4, INT8, INT16 integer and FP16 floating-point calculations) AI development: supports classification, detection, tracking, recognition, segmentation, and other algorithms.
